4” SQUARE, 2-1/8” DEEP BOX WITH MKO, 10” PIGTAIL AND BACK MOUNTING PLATE
$7.12
4Sdb-Mko-Pt With Back Mounting Plate, 10″ Pigtail
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX |
| Page | A9 |
| Barcode | 8-35243-02203-4 |
| Description: | |

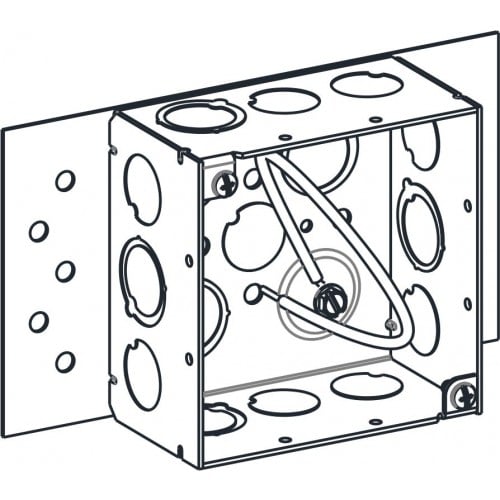

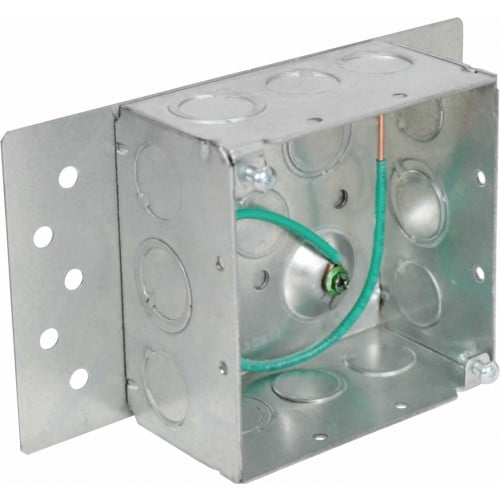

| Orbit’s Surface Mounting Box (4SDB-BP) provides a solution for surface mounting pre-wired boxes. Featuring a flat back plate with screw holes, this 4″ square box can be mounted to most surfaces without having to access the inside of the box itself! | |
| Features: | |

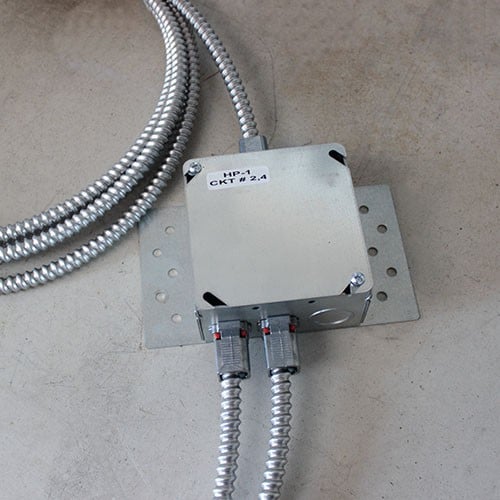

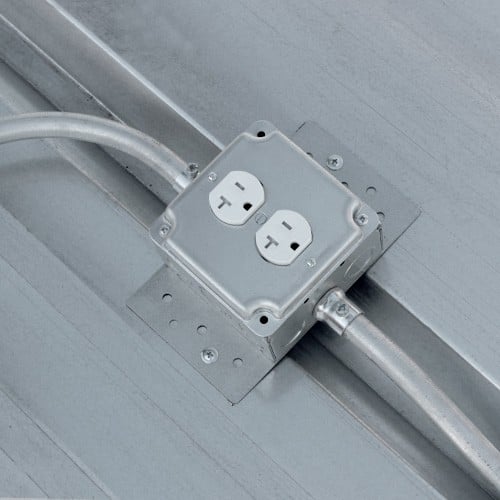

| – Raised Ground Emboss – Includes 10″ Solid Cu. #12AWG Pigtail and 10-32 Ground Screw – Back Mounting Plate allows for the pre-wiring of the box with device and cover before shipping to the field – Can be mounted to ceilings, walls, corrugated surfaces or underneath counters – For Fixture/Luminaire Support of 50 lbs or less |
|
| Dimensions: | |
| Width | 6.93″ |
| Height | 4″ |
| Depth | 2-1/8″ |
| Cu In | 30.3 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Mfg. Process | Welded |
| Color | Galvanized |
| KO Sides | (8) – 1/2″, (4) – MKO |
| KO Bottom | (2) – 1/2″, (2) – MKO |
| Packaging Info: | |
| Std Pkg | 24 |
| Weight | 24.5 lbs |
| Certifications: | |
  |
|
| UL File Number: | |
| E227970 | |
| Literature | |
