PREASSEMBLED SSB WITH UMA AND 4S DEEP BOX WITH 10” GROUND PIGTAIL SSB-4S
$12.73
Simple Support Bracket With Uma&4Sdb-50/75-Pt, Assbly
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB |
| Barcode | 8-35243-00642-3 |
| Description: | |

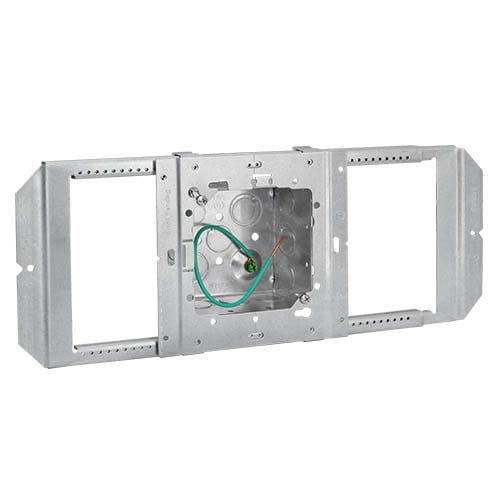

| Orbit’s Preassembled SSB-T5 with UMA and 4″ (4S) Box is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-4S bracket component adjusts from 15” to 25” with UMA attached to bracket. Includes 4” square 2-1/8” deep box with 1/2″ & 3/4” knockouts and preinstalled 10” pigtail. UL Listed. | |
| Features: | |
| – SSB-T5 bracket adjusts from 15″ to 25″ – Rigidity eliminates need for far-side back support – Includes 4” square 2-1/8” deep box with 1/2″ & 3/4” KOs – Includes 10-32 Ground Screw with 10″ Solid Cu. #12AWG Pigtail – Snap-on UMA adapter can be removed and installed quickly without tools – Slide 4” box to critical position – lock in place with one Tek screw – Horizontal pin holes provide quick starting point for screws – Compatible with Orbit’s UL Adjustable Rings – Optional BMCS Series provides built-in cable/conduit support – Add LVSB Series Rings for low voltage applications that require no back-box – Ships preassembled, reducing installation time |
|
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| Sides KOs | (8) – 1/2″, (4) – 3/4″ |
| Bottom KOs | (2) – 1/2″, (2) – 3/4″ |
| Packaging Info: | |
| Std Pkg | 12 |
| Certifications: | |
  |
|
| Literature | |
Product Video
Additional information
| Weight | 24.63 kg |
|---|
Reviews
There are no reviews yet.
