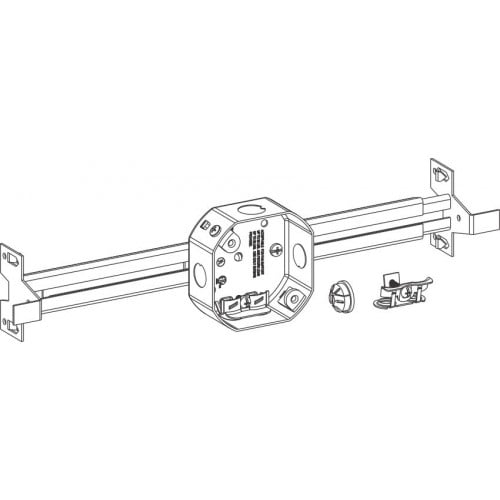

1-1/2” DEEP, 4” FAN SUPPORT BOX AND NEW CONSTRUCTION BAR HANGER ASSEMBLY FSB-NBH
$18.06
New Const. Fan Support Box 1-1/2″ Deep
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A1 | |
| Barcode | 8-35243-01283-7 | |
| Features: | ||
| -NM Clamp for Non-Metallic Sheathed Cables with ground -New Construction Bar Hanger slides apart to fit joist spacing from 16″ to 24″ -Comes with Hardware Pack which includes Push-in NM Cable Connector and replaceable MC Clamp -Easy-to-follow Instruction Sheet (A)(C)(D) -Complies with NEC 314.27 for up to 70 lbs. of ceiling fan load or 70lbs.of fixture load |
||
| Dimensions: | ||
| Width | 4″ | |
| Height | 4″ | |
| Depth | 1-1/2″ | |
| Cu In | 15.5 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Clamp Type | BX/MC, NM | |
| Bracket | NBH, 16″ To 24″ | |
| Knockouts | (3) -1/2″, (2) – Loom | |
| Packaging Info: | ||
| Std Pkg | 10 | |
| Weight | 22 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
