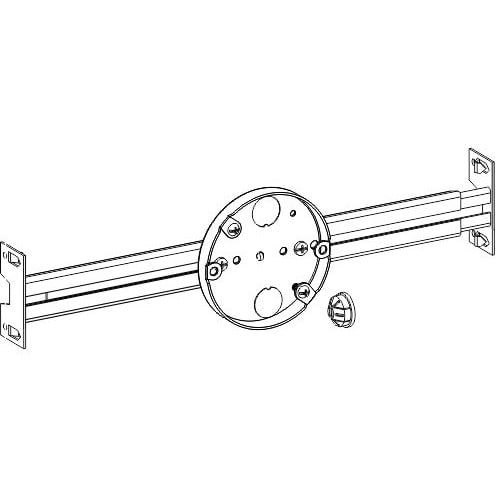

1/2” DEEP, 4” FAN SUPPORT PANCAKE BOX AND NEW CONSTRUCTION BAR HANGER ASSEMBLY FS4PB-NBH
$14.86
New Const. Fan Support Box 1/2″ Deep
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A1 | |
| Barcode | 8-35243-01370-4 | |
| Features: | ||
| – Includes Push-in NM Cable Connector – New Construction Bar Hanger slides apart to fit joist spacing from 16″ to 24″ – Easy-to-follow Instruction Sheet (A)(C)(D) – Complies with NEC 314.27 for up to 70 lbs. of ceiling fan load or 70lbs.of fixture load |
||
| Dimensions: | ||
| Diameter | 4″ | |
| Depth | 1/2″ | |
| Cu In | 5.8 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Knockouts | 2-1/2″ | |
| Bracket | NBH, 16″ TO 24″ | |
| Packaging Info: | ||
| Std Pkg | 10 | |
| Weight | ||
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
Additional information
| Weight | 21.61 kg |
|---|
