2-1/2” DEEP, GANGABLE 1-GANG SWITCH BOX WITH MC CLAMPS & B BRACKET GB-1-MC-B
$3.88
1-G Gangable Mc Sw Box 2-1/2″ Deep + B
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A34 | |
| Barcode | 8-35243-01290-5 | |
| Description: | ||

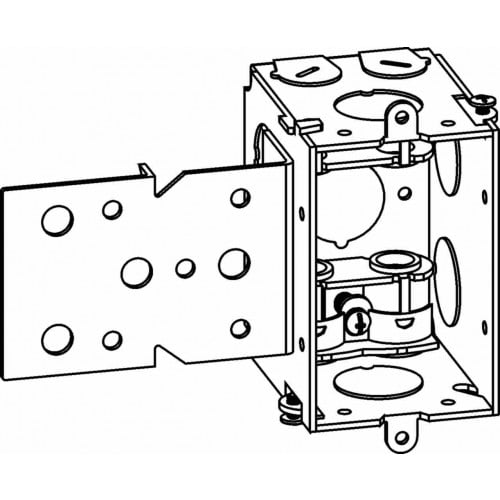

| Gangable Switch Box, With BX/MC Cable Clamps & B Bracket | ||
| Features: | ||
| – Removable side cover for multigang applications – MC Clamp for Metal Clad Cables – B Bracket for face mounting on front edge of wood stud |
||
| Dimensions: | ||
| Width | 2″ | |
| Height | 3″ | |
| Depth | 2 – 1/2″ | |
| Cu In | 12.5 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Color | Galvanized | |
| Clamp Type | BX/MC | |
| Bracket | B, 9/16″ | |
| No. of Gangs | 1 | |
| KO Sides | (2) – 1/2″ | |
| KO Ends | (2) – 1/2″, (4) – Loom | |
| KO Bottom | (1) – 1/2″ | |
| Packaging Info: | ||
| Std Pkg | 50 | |
| Weight | 34 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
