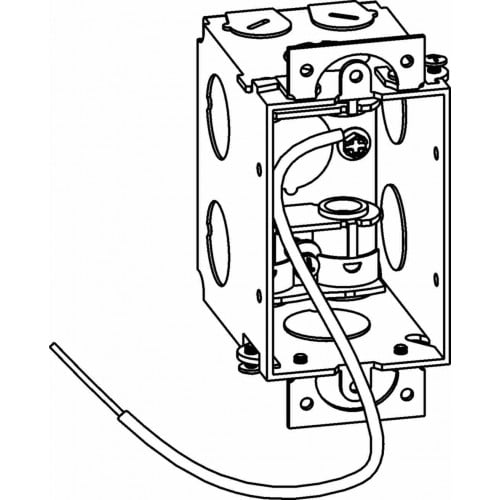

2-3/4” DEEP, GANGABLE 1-GANG SWITCH BOX WITH MC CLAMPS GMB-1-MC
$5.06
1-G Gangable Sw Box 2-3/4″ Deep Mc Type
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A35 | |
| Barcode | 8-35243-01144-1 | |
| Description: | ||
| Intermediate Depth Gangable Switch Box, With BX/MC Cable Clamps | ||
| Features: | ||
| – Removable side cover for multigang applications – MC Clamp for Metal Clad Cables – With Pre-assembled 7″ Solid Cu. #12AWG Pigtail and 10-32 Ground Screw – Suitable for use with MCI-A Type |
||
| Dimensions: | ||
| Width | 2″ | |
| Height | 3″ | |
| Depth | 2 – 3/4″ | |
| Cu In | 14.0 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Color | Galvanized | |
| Clamp Type | BX/MC | |
| No. of Gangs | 1 | |
| KO Sides | (4) – 1/2″ | |
| KO Ends | (2) – 1/2″, (4) – Loom | |
| KO Bottom | (1) – 1/2″ | |
| Packaging Info: | ||
| Std Pkg | 50 | |
| Weight | 31 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
Additional information
| Weight | 34.86 kg |
|---|
