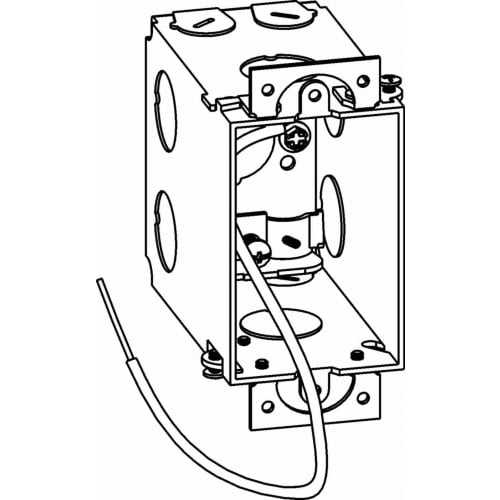

3-1/2” DEEP, GANGABLE 1-GANG SWITCH BOX WITH NM CABLE CLAMPS GDB-1-NM
$5.52
1-G Gangable Mc Sw Box 3-1/2″ Deep
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A36 | |
| Barcode | 8-35243-01198-4 | |
| Description: | ||
| 3 – 1/2″ Deep Gangable Switch Box, With NM Cable Clamps | ||
| Features: | ||
| – With Pre-assembled 7″ Solid Cu. #12AWG Pigtail and 10-32 Ground Screw – Removable side cover for multigang applications – NM Clamp for Non-Metallic Sheathed Cables with ground |
||
| Dimensions: | ||
| Width | 2″ | |
| Height | 3″ | |
| Depth | 3 – 1/2″ | |
| Cu In | 18.0 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Color | Galvanized | |
| Clamp Type | NM | |
| No. of Gangs | 1 | |
| KO Sides | (4) – 1/2″ | |
| KO Ends | (2) – 1/2″, (4) -Loom | |
| KO Bottom | (1) – 1/2″ | |
| Packaging Info: | ||
| Std Pkg | 50 | |
| Weight | 38 lbs | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
