4” WELDED SQUARE BOX W/ BUILT-IN ADAPTER, INTERNAL ADJUSTMENT FA-UMIAB-35
$12.08

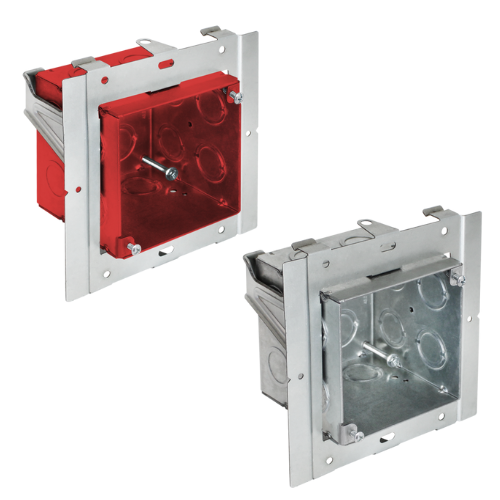

Red 4″ Square 3-1/2″ Deep Box Internal Adj. From 1/2″-1-1/2″
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX |
| Page | A24 |
| Description: | |
| Orbit’s Universal Mounting Internal Adjustment Boxes (UMIAB Series) are 4″ Sq. Boxes with a built-in adapter for mounting and adjusting the box to fit various Electrical or Fire Life Safety applications. Built-in adapter allows for adjustment of the UMIAB-35’s from 1/2″ to 1-1/2″ and the UMIAB-25’s from 1/2″ to 1-1/4”, ensuring devices sit flush with wall surfaces. UMIAB’s mount direct to stud frames. Mount UMIAB’s between studs or joists with Orbit’s SSB-T5; or between drop ceiling grids with SSB-TBAR. Internal Adjustment allows for box adjustment both before or after dry wall installation. FA-UMIAB-25 are powder coated red for quick identification of FA devices. | |
| Features: | |
| – The Best Way to mount Extra Deep 4″ Square Boxes – Internal adjustment screws allow the box to be adjusted before and after dry wall installation – Built-In Internal Adjustment from 1/2″ to 1-1/2” for the UMIAB-35’s and 1/2″ to 1-1/4” for UMIAB-25’s – UMIAB-25’s ideal for use with 2-1/2” Deep Wall Studs – Can be mounted directly to studs or snapped onto SSB-T5 for between stud or overhead/hard lid applications and SSB-TBAR for drop ceiling applications – Available in a Red Finish as the FA-UMIAB-25 for Fire Alarm Installations – Ideal for Life Safety systems rough-in – Engraved depth stamp on box allows for depth measurement without requiring additional measuring tools – Branch Line Restraint holes * For a 4″ octagon (4O) box version, please see UMAB-4R Series. |
|
| Dimensions: | |
| Width | 4″ |
| Height | 4″ |
| Depth | See chart below |
| Cu In | See chart below |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Mfg. Process | Welded |
| Color | Red / Steel |
| KO Sides | See chart below |
| KO Bottom | See chart below |
| Certifications: | |
  |
|
| UL File Number: | |
| E227970 | |
Catalog
|
UPC |
Description |
Box Depth |
Cu. In. |
Adj. Range |
KO Sides |
KO Bottom |
Std. Pkg. |
| UMIAB-25 | 8-35243-03824-0 | Internal Adj. 4″ Sq. Box | 2-1/2″ | 36.0 | 1/2″ – 1-1/4″ |
(4) – 1/2″, (4) – MKO |
(4) CKO | 10 |
| FA-UMIAB-25 | 8-35243-03825-7 | Internal Adj. 4″ Sq. Box, Red Powder Coat Finish | 10 | |||||
| UMIAB-35 | 8-35243-03826-4 | Internal Adj. 4″ Sq. Box | 3-1/2″ | 46.0 | 1/2″ – 1-1/2″ |
(12) CKO | (4) CKO | 10 |
Additional information
| Weight | 16.03 kg |
|---|
