TRUE 5” SQUARE BOX, BLUE
$12.79

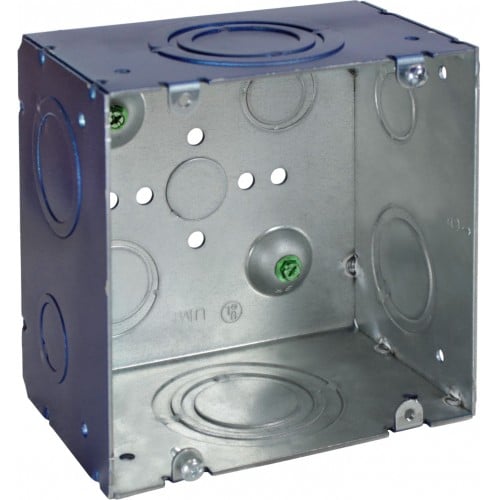

Blue True 5″ Square Box
- Description
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | A23 | |
| Barcode | 8-35243-02222-5 | |
| Description: | ||
| Orbit Industries’ selection of 5” Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress. | ||
| Features: | ||
| – In blue for data applications – More than double the capacity of standard 4” square boxes – Increased capacity easily meets minimum bend radius requirements for an easier installation – Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress – Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician – Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases – Compatible with Orbit’s Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications – Suitable brackets allow the T5B to use a 4″ ring, reducing material costs – Cover, Reducer and Partitions available here |
||
| Dimensions: | ||
| Width | 5″ | |
| Height | 5″ | |
| Depth | 3-1/4″ | |
| Cu In | 71.8 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Mfg. Process | Welded | |
| KO Sides | (2) 1″ to 2″ C.K.O.’s, (2) 1″ & 1-1/4″ M.K.O.’s, (2) 1/2″ & 3/4″ M.K.O.’s |
|
| KO Bottom | (1) 1/2″ & 3/4″ M.K.O.’s, (1) 3/4″ & 1″ M.K.O.’s (1) 1/2″ K.O.’s, (2) Ground Screws |
|
| Packaging Info: | ||
| Std Pkg | 12 | |
| Certifications: | ||
 |
||
| Literature | ||
