BOX & CONDUIT HANGER SUPPORT UP TO 8”X8” BOX
$17.30
Box & Conduit Hanger Support Up To 8X8 Box,Take 1-Hole Strap
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB |
| Page | P20 |
| Barcode | 8-35243-03831-8 |
| Description: | |

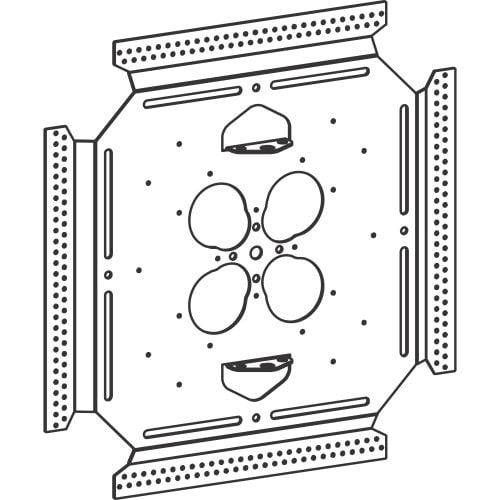

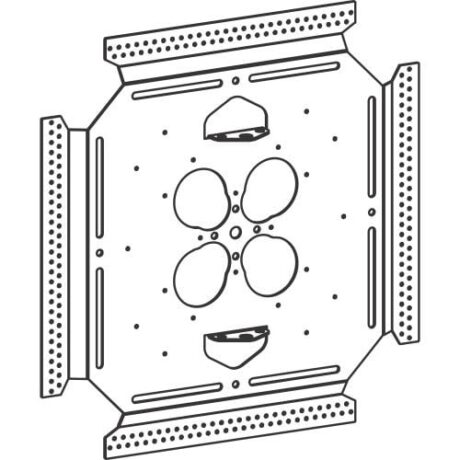

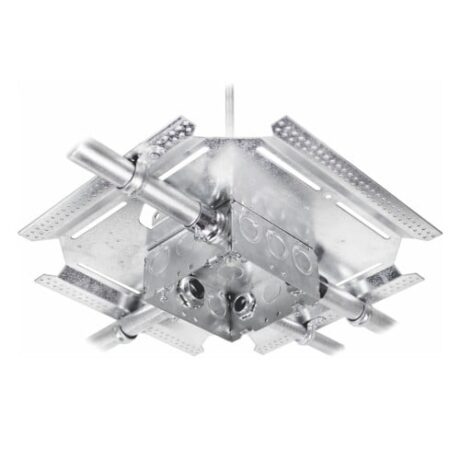

| Orbit’s Made-in-USA Box and Conduit Hanger Support plate mounts up to 8” x 8” junction boxes or multiple smaller boxes – both vertically and overhead. A single BCHS-8S can support several boxes and incoming conduit– suspended from just ONE threaded rod! The BCHS-8S features offsets for using one-hole straps, stamped markings for box placement, and several pin holes and slots for attaching two-hole straps and pipe hangers. UL Listed. | |
| Features: | |
| – Support suspended boxes and multiple conduit installations with one piece of all-thread – Plate offset provides cable/conduit support via one-hole straps to any knockout (KO) on installed junction boxes – Pin holes and slots allow for use of conduit straps – Stamped markings provide guidelines for box placement. Boxes can be placed in any location on plate – Easy to preassemble to save time and material – UL Rated: Support of 110lbs (49.89kg) or less – No cutting required – Self-reinforcing as more conduits are added – Made in USA, BABA Compliant – Patented – Installation Instructions |
|
| Specifications: | |
| Width | 13.3″ |
| Height | 13.3″ |
| Offset | 3/8″ |
| Material | 16 GA Sheet Steel |
| Color | Galvanized |
| Packaging Info: | |
| Std Pkg | 10 |
| Weight | 23.3 lbs. |
| Certifications: | |
    |
|
| UL File Number: | |
| E310661 | |
| E544065 | |
| E544066 | |
