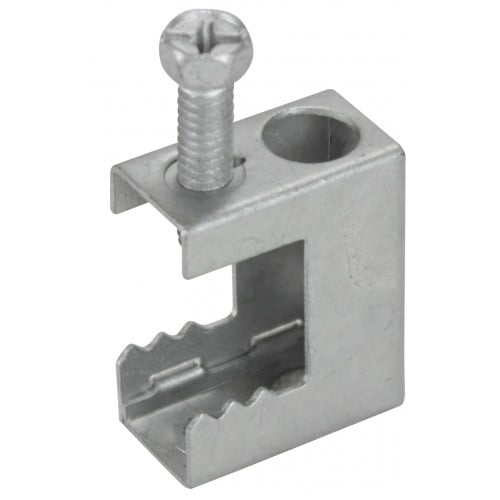

SPRING STEEL BEAM CLAMP
$1.63
Spring Steel, Beam Clamp, 1/4″ Rod, 7/16″ Hole,1/2″ Max. Flg
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F31 |
| Description: | |
| Orbit Industries’ spring steel beam clamp can be easily installed on beam flanges with the thickness up to 1/2”. The holes on the back and the bottom of the clamp can support variety of attachments. | |
| Features: | |
| – Spring Steel – Supports threaded rods, electrical boxes and conduits – Supports #10-24 and 1/4″-20 threaded bridle rings – Easy installation for beam flanges |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | HOLE SIZE | ROD SIZE | STATIC LOAD | STD PKG |
| BCSS | 8-35243-02437-3 | 1/2” MAX | 7/16” | 1/4”&3/8” | 100 LB | 100 |
Additional information
| Weight | 5.49 kg |
|---|
