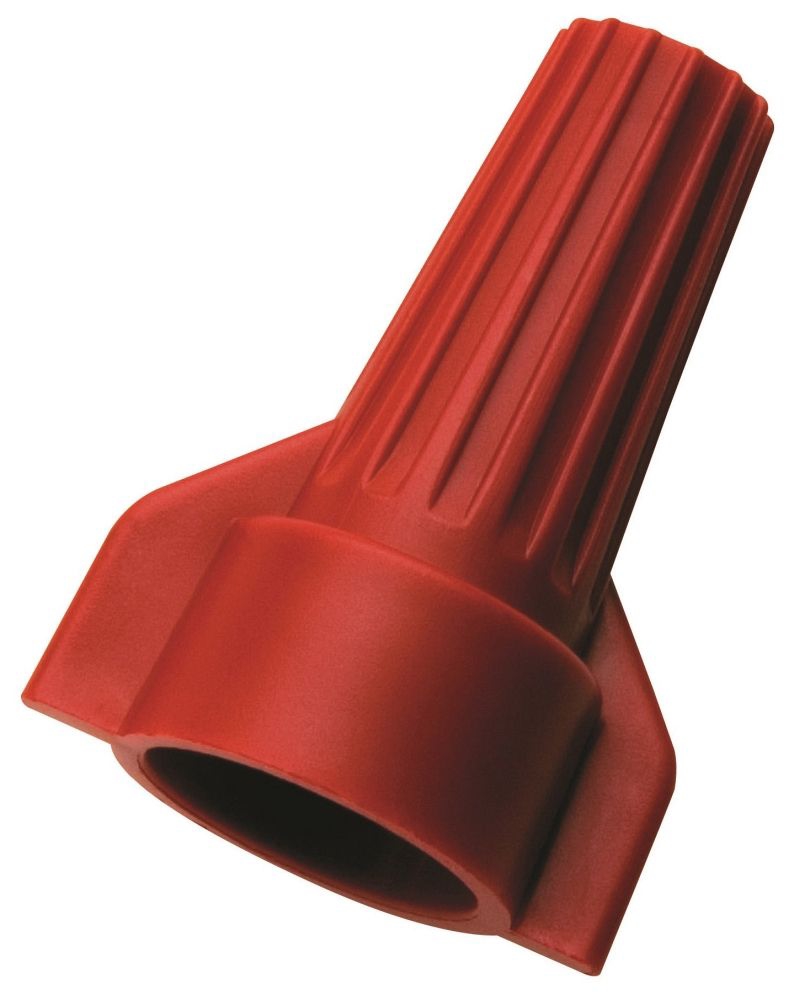

Buchanan WT52-500JR Red Connector 500/Jar
$239.40
Description:
Buchanan WT52-500JR Red Connector 500/Jar
Buchanan WT52-500JR Red Connector 500/Jar
Technical Description:
Contoured Wing Type; Red Color; (2) #4 min. Wire Combination Size; (5) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL 486A, CSA C22.2 Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178996769 |
| Maximum Wire Combination Size: | (5) #12 |
| Spring Type: | Expanding, Square Wire |
| Shell Material: | Thermoplastic Polyester |
| Color: | Red |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 500 per Jar |
| Approval: | UL 486A, CSA C22.2 |
| Additional Information: | RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Overall Dimension 0.62 Inch Diameter x 0.9 Inch Width x 1.26 Inch Height |
| Catalog Number: | WT52-500JR |
| Brand Name: | WingTwist[R] |
| Model: | WT52 |
| Type: | Contoured Wing |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 18 to 10 AWG |
| Minimum Wire Combination Size: | (2) #4 |
| CATALOG DESCRIPTION: | BUCHANAN, WIRE CONNECTOR, WINGTWIST, CONDUCTOR RANGE: 18 – 10 AWG, 2/12 AWG MIN, 5/12 AWG MAX, NUMBER OF CONDUCTORS: 2 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: RED, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), MODEL NUMBER: WT52 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing Type; Red Color; (2) #4 min. Wire Combination Size; (5) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL 486A, CSA C22.2 Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 500 Per Jar Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Expanding, Square Wire Spring Type; Wingtwist [R] Brand; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Overall Dimension 0.62 Inch Diameter X 0.9 Inch Width X 1.26 Inch Height; WT52 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Description: | Buchanan WT52-500JR Red Connector 500/Jar |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 781789967691 |
| Unique Product Key: | 6439510 |
| comm code enhanced: | 64200 |
