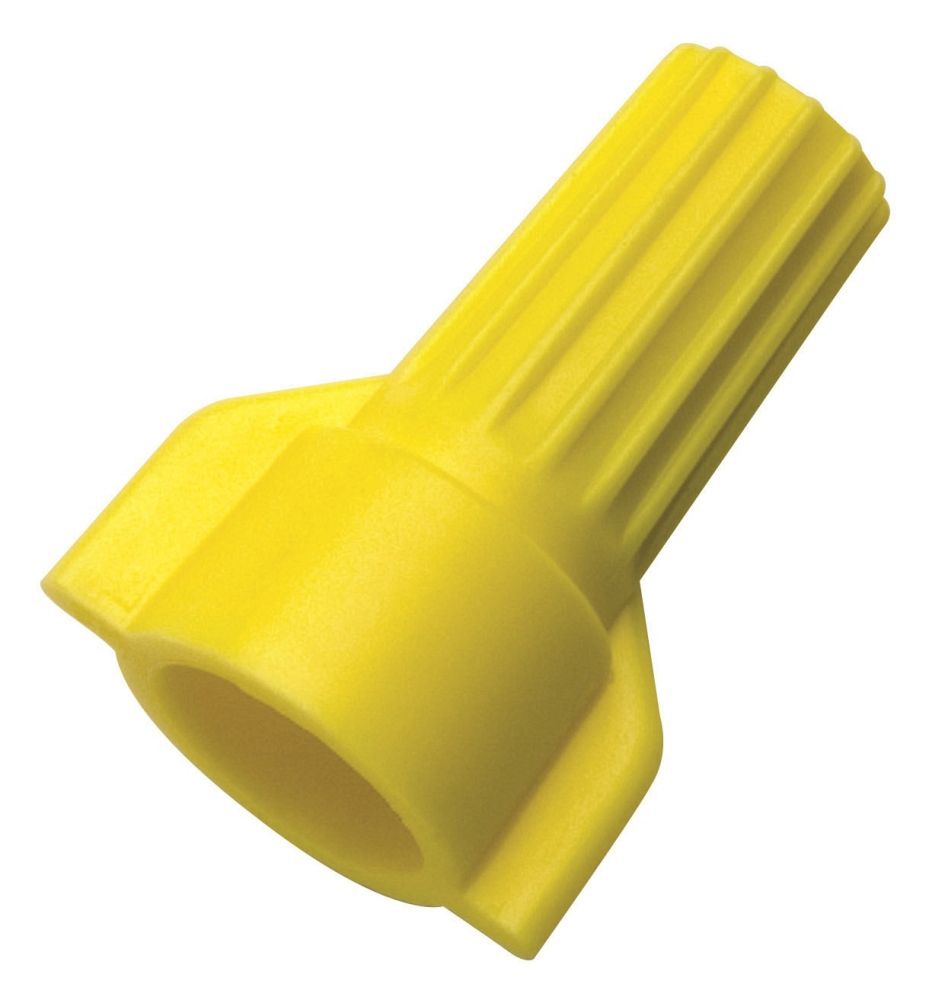

Buchanan WT51-500JR Yellow Connector 500/Jar
$281.40
Description:
Buchanan WT51-500JR Yellow Connector 500/Jar
Buchanan WT51-500JR Yellow Connector 500/Jar
Technical Description:
Contoured Wing Type; Yellow Color; (2) #18 min. Wire Combination Size; (3) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL, CSA C22.2 Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; 500 Per Jar Standard Package
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78178996768 |
| Maximum Wire Combination Size: | (3) #12 |
| Spring Type: | Expanding Square Wire |
| Shell Material: | Zinc Plated, Thermoplastic Polyester |
| Color: | Yellow |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 500 per Jar |
| Approval: | UL, CSA C22.2 |
| Additional Information: | RoHS Compliant; Material Steel (Insert) |
| Catalog Number: | WT51-500JR |
| Brand Name: | Ideal |
| Model: | WT51 |
| Type: | Contoured Wing |
| Voltage Rating: | 600 Volt |
| Wire Type: | Copper |
| Wire Size: | 18 to 10 AWG |
| Minimum Wire Combination Size: | (2) #18 |
| CATALOG DESCRIPTION: | BUCHANAN, WIRE CONNECTOR, WINGTWIST, CONDUCTOR RANGE: 18 – 10 AWG, 2/18 AWG MIN, 3/12 AWG MAX, NUMBER OF CONDUCTORS: 1 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: YELLOW, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), MODEL NUMBER: WT51 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing Type; Yellow Color; (2) #18 min. Wire Combination Size; (3) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL, CSA C22.2 Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; 500 Per Jar Standard Package; Copper Wire Type; Zinc Plated, Thermoplastic Polyester Shell Material; Expanding Square Wire Spring Type; Wingtwist [R] Brand; RoHS Compliant; Material Steel (Insert); WT51 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Buchanan Products |
| Product Brochure | |
| Product Description: | Buchanan WT51-500JR Yellow Connector 500/Jar |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 781789967684 |
| Unique Product Key: | 6439509 |
| comm code enhanced: | 64200 |
