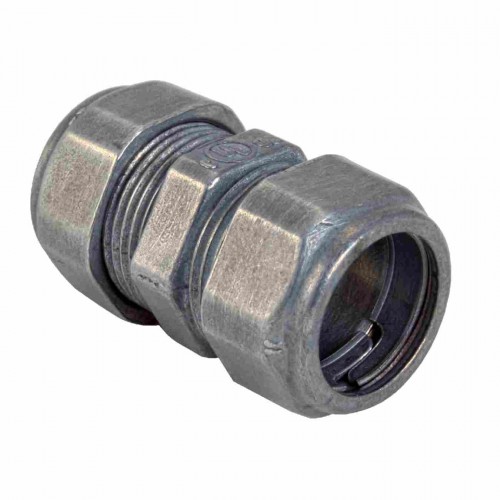

ZINC DIE-CAST EMT COUPLINGS COMPRESSION TYPE OF620
$30.31
Zinc Emt Comp. Coup. 4″
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D5 |
| Description: | |
| Orbit Industries’ zinc die-cast EMT compression couplings are used to connect the ends of two EMT thinwall conduits together to extend the raceway. | |
| Features: | |
| – Zinc Die Cast – Concrete-Tight – Suitable for applications above 600V – Sizes 2-1/2″ to 4″ are also listed for RIGID and IMC Conduits – Compression Cap color may vary |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310660 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF611 | 8-35243-04986-4 | 1/2″ | 50 | 500 |
| OF612 | 8-35243-04987-1 | 3/4″ | 25 | 250 |
| OF613 | 8-35243-04988-8 | 1″ | 10 | 100 |
| OF614 | 8-35243-04989-5 | 1-1/4″ | 10 | 100 |
| OF615 | 8-35243-04991-8 | 1-1/2″ | 10 | 50 |
| OF616 | 8-35243-04993-2 | 2″ | 5 | 50 |
| OF617 | 8-35243-04995-6 | 2-1/2″ | – | 12 |
| OF618 | 8-35243-04996-3 | 3″ | – | 12 |
| OF619 | 8-35243-04997-0 | 3-1/2″ | – | 6 |
| OF620 | 8-35243-04998-7 | 4″ | – | 6 |
Additional information
| Weight | 7.12 kg |
|---|
