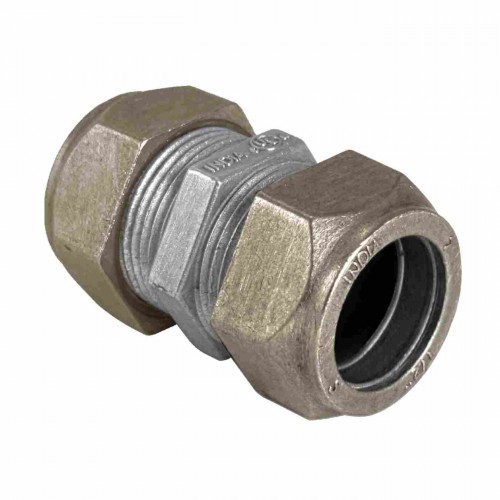

ZINC DIE-CAST EMT COUPLINGS COMPRESSION TYPE & RAIN-TIGHT OF620-W
$52.11
Zinc Emt Wmp Comp. Coup. 4″ Rt
- Description
- Additional information
- Reviews (0)
Description
| Category | PIPE FITTING |
| Page | D5 |
| Description: | |
| Orbit Industries’ rain tight zinc die-cast EMT compression couplings are used to connect the ends of two EMT thinwall conduits together to extend the raceway. Orbit Industries’ rain-tight EMT compression connectors have been designed to comply with the new rain-tight test requirements along with the 2008 NEC 358.42 and 314.15 requirements. | |
| Features: | |
| – Zinc Die Cast – Rain-Tight – Suitable for applications above 600V – Sizes 2-1/2″ to 4″ are also listed for RIGID and IMC Conduits – Compression Cap color may vary |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310660 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| OF611-W | 8-35243-04874-4 | 1/2″ | 50 | 500 |
| OF612-W | 8-35243-04875-1 | 3/4″ | 25 | 250 |
| OF613-W | 8-35243-04876-8 | 1″ | 10 | 100 |
| OF614-W | 8-35243-04990-1 | 1-1/4″ | 10 | 100 |
| OF615-W | 8-35243-04992-5 | 1-1/2″ | 10 | 50 |
| OF616-W | 8-35243-04994-9 | 2″ | 5 | 50 |
| OF617-W | 8-35243-05259-8 | 2-1/2″ | – | 12 |
| OF618-W | 8-35243-05260-4 | 3″ | – | 12 |
| OF619-W | 8-35243-05261-1 | 3-1/2″ | – | 6 |
| OF620-W | 8-35243-05262-8 | 4″ | – | 6 |
Additional information
| Weight | 7.06 kg |
|---|
