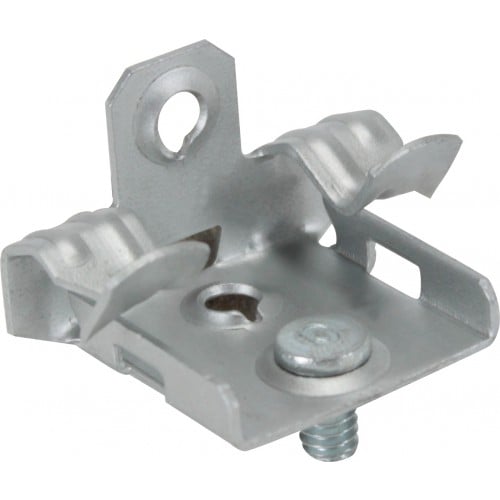

HAMMER ON FLANGE CLIPS, BOTTOM MOUNT WITH STUD, 1/8” – 3/4” FLANGE FM912S
$2.37
Ham. On Flange Clip, B.Mnt. W/Stud, 9/16″-3/4″ Flg,1/4″ Rod
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F32 |
| Description: | |
| Orbit Industries’ bottom mount with stud hammer on flange clips can be independently mounted to any surface. Tap on flanges from 1/8” to 3/4” with the hammer. Captive threaded stud helps minimize other hardware. Further attachment is possible with rods or straps. | |
| Features: | |
| – Spring Steel – Can be used to support boxes, fixtures or other attachments from beam flanges – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | ROD SIZE | SCREW | VERT. ROD | HORI. ROD | VERT. STRAP | STD PKG |
| FM24S | 8-35243-02426-7 | 1/8” – 1/4” | 1/4” | 1/4” X 3/8” | 100 LB | 25 LB | 75 LB | 100 |
| FM58S | 8-35243-02427-4 | 5/16” – 1/2” | 1/4” | 1/4” X 3/8” | 100 LB | 25 LB | 75 LB | 100 |
| FM912S | 8-35243-02428-1 | 9/16” – 3/4” | 1/4” | 1/4” X 3/8” | 100 LB | 25 LB | 75 LB | 100 |
Additional information
| Weight | 8.25 kg |
|---|
