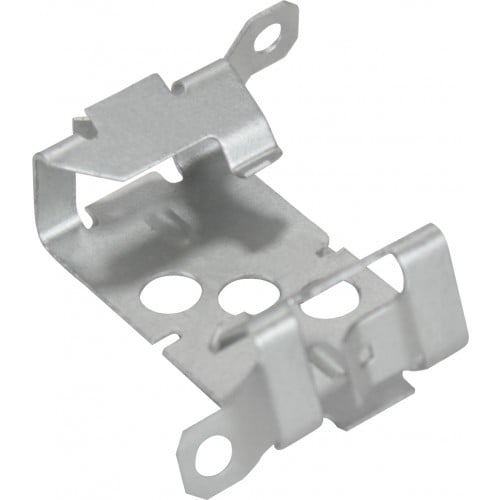

MC/AC CABLE TO STUD CLIP FMAC2
$0.85
Mc/Ac Cable To Stud Clip,1/8″ Max Flange,14-2 To 10-3 Mc/Ac
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F10 |
| Description: | |
| Orbit Industries’ MC/AC cable to stud clip can be easily installed to flanges with thickness up to 1/8” by using the legs, or be screwed on concrete, block or wood and metal studs by using the mounting holes. The clip is used to position MC/ AC cables as required by NEC® Article 300.4(d) and CEC Rule 12-618. The clip can be snapped to make two clips for single cable runs. | |
| Features: | |
| – Spring Steel – No tools needed for installation – Holes in clip allow it to be screwed to wood stud, concrete or block – Stabilizer leg provides “wobble-free” support – Compliant with NEC® Article 300.4(d), allowing cable to be positioned a minimum of 1-1/4” from face of stud – Compliant with CEC Rule 12-618 for support of MC/AC cable – Can be snapped in half making one clip to two |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | MC/AC CABLE SIZE | STD PKG |
| FMAC2 | 8-35243-02452-6 | 1/8” MAX | 14-2 TO 10-3 | 100 |
Additional information
| Weight | 3.04 kg |
|---|
