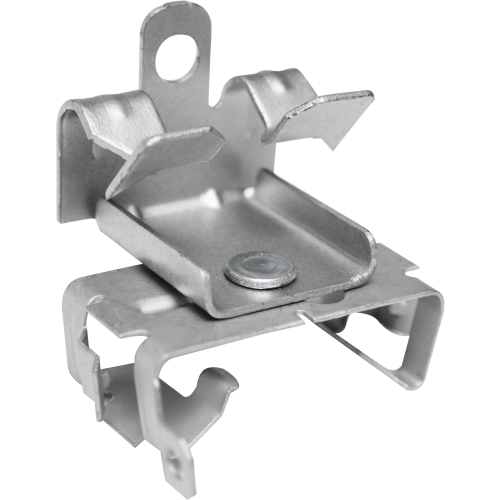

MC/AC CABLE TO FLANGE CLIPS, BOTTOM MOUNT, 1/8” – 3/4” FLANGE, 14-2 TO 10-3 MC/AC FMAC224
$2.95
Cable To Flg.Clip,Bot.Mnt.14-2 To 10-3 Mc/Ac,1/8″-1/4″Flg.
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Description: | |
| Orbit Industries’ bottom-mount MC/AC cable-to-flange clips can be easily installed onto flanges with a thickness ranging from 1/8″ to 3/4″ using only a hammer. The clip is designed to secure MC/AC cables in compliance with NEC® Article 300.4(D) and CEC Rule 12-618. | |
| Features: | |
| – Spring Steel – Easily installs cables onto beam flanges using only a hammer – Complies with NEC® Article 300.4(D), ensuring cables are positioned at least 1-1/4” from the face of the stud – Meets CEC Rule 12-618 for proper support of MC/AC cables |
|
| CAT NO | UPC | FLANGE THICKNESS | MC/AC CABLE SIZE | STD PKG |
| FMAC224 | 8-35243-04014-4 | 1/8” – 1/4” | 14-2 TO 10-3 | 100 |
| FMAC258 | 8-35243-04015-1 | 5/16” – 1/2” | 14-2 TO 10-3 | 100 |
| FMAC2912 | 8-35243-04016-8 | 9/16” – 3/4” | 14-2 TO 10-3 | 100 |
Additional information
| Weight | 3.8 kg |
|---|
