STRAP HANGER FOR ANGLE PURLIN RIGHT ANGLE FMSR122
$2.33
Strap Hanger For Angle Purlin,R. Angle,3/32″Flg.1-1/4″Strap
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Page | F35 |
| Description: | |

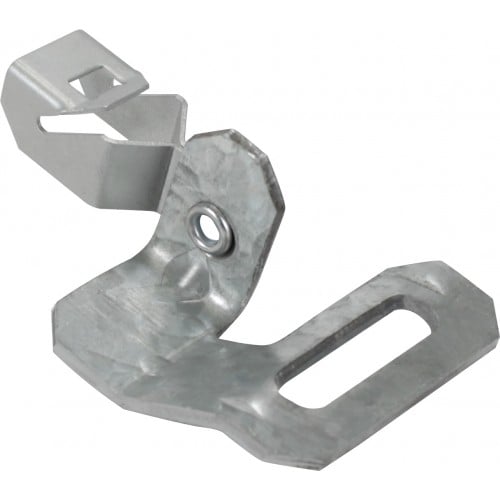

| Orbit Industries’ right angle strap hanger for angle purlin is designed for angle purlin with flange thickness up to 3/32”, and can be easily and fast installed to angle purlins with only a hammer. The hanger is used to support pipes, ducts or other products with straps. The hanger suspends straps at right angle to the purlin, and supported pipes and ducts are parallel to the purlin. Installers need to measure the length of strap to keep the supported pipe and duct at an appropriate position. | |
| Features: | |
| – Spring Steel Clip – Pre-galvanized Steel Hanger – Compensates angle of purlin – Suspends straps at right angle to purlins – Only hammer needed for installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | STRAP WIDTH | STATIC LOAD | STD PKG |
| FMSR122 | 8-35243-02646-9 | 3/32″ MAX | 1-1/4″ MAX | 100 LB | 50 |
Additional information
| Weight | 6.81 kg |
|---|
