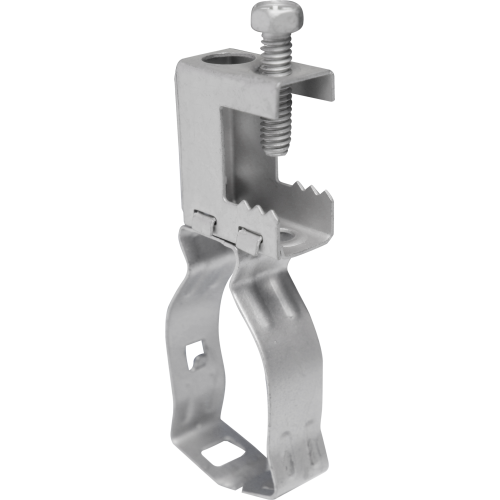

CONDUIT TO BEAM CLAMPS, BOTTOM MOUNT, SNAP CLOSE FBC812M
$4.11
Cond.To Beam Clp. Bot.Mnt. 1/2″-3/4″Emt, 1/2″Max Flg.Snp.Cls
- Description
- Additional information
- Reviews (0)
Description
| Category | FASTENER |
| Description: | |
| Orbit Industries’ bottom-mount snap-close conduit-to-beam clamps can be easily and quickly installed onto beam flanges up to 1/2″. These clips support EMT and rigid conduit from the bottom of beams and securely snap conduit into place. The rotatable joint allows the snap-close conduit clip to rotate 360°, accommodating conduit in various directions. | |
| Features: | |
| – Spring Steel – Support conduit from beam flanges – Snap-close clip pivots 360° for flexible conduit positioning – Quick and easy installation |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E328572 | |
| CAT NO | UPC | FLANGE THICKNESS | EMT/RIGID SIZE | STATIC LOAD | STD PKG |
| FBC812M | 8-35243-04004-5 | 1/2” MAX | 1/2”, 3/4” | 100 lbs. | 100 |
| FBC16M | 8-35243-04005-2 | 1/2” MAX | 1” | 100 lbs. | 100 |
| FBC20M | 8-35243-04006-9 | 1/2” MAX | 1-1/4” | 100 lbs. | 100 |
| FBC24M | 8-35243-04007-6 | 1/2” MAX | 1-1/2″ | 100 lbs. | 50 |
| FBC32M | 8-35243-04008-3 | 1/2” MAX | 2″ | 100 lbs. | 50 |
Additional information
| Weight | 8.93 kg |
|---|
Reviews
There are no reviews yet.
