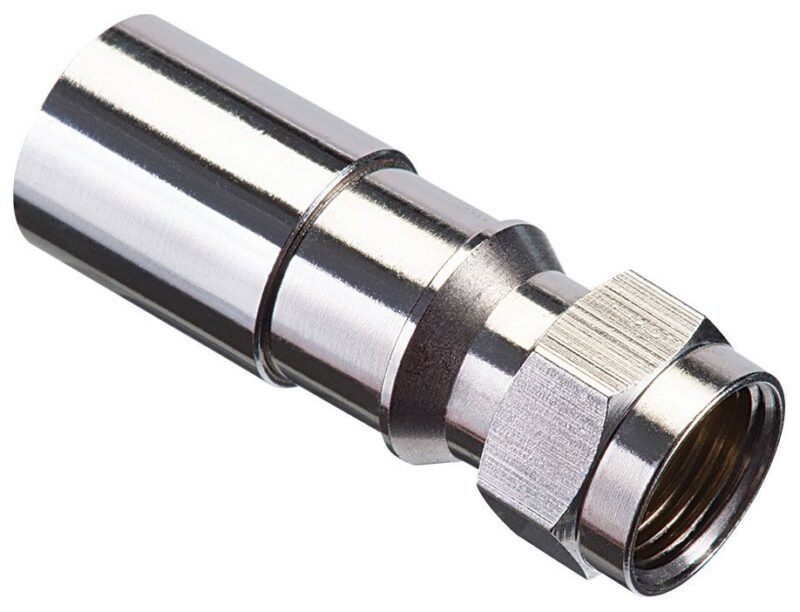

Ideal 92-656 Rg6 Reg/Tri/Qd F Compression Connectors 100Jr
$102.56
Description:
Ideal 92-656 Rg6 Reg/Tri/Qd F Compression Connectors 100Jr
Ideal 92-656 Rg6 Reg/Tri/Qd F Compression Connectors 100Jr
Technical Description:
RG6 Regular/Tri-Shield/Quad Plenum Cable Type; Straight Configuration; Indoor/Outdoor, Cable, Satellite Television Application; 100 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.226 to 0.31 Inch Cable Insulation Outer Diameter
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325092656 |
| Body Material: | Nickel Plated Brass |
| Standard Package: | 100 per Jar |
| Application: | Indoor/Outdoor, Cable, Satellite Television |
| Additional Information: | Band Width 3 Giga Hertz; Dielectric Diameter 0.168 to 0.183 Inch; Nut Diameter Size 7/16 Inch with 3/8 Inch-32 TPI; Cable Retention 40 Pound |
| Catalog Number: | 92-656 |
| Brand Name: | RTQ[TM] XR[TM] |
| Model: | 6FRTQXR |
| Coupling Style: | F |
| Configuration: | Straight |
| Cable Type: | RG6 Regular/Tri-Shield/Quad Plenum |
| Cable Insulation Outer Diameter: | 0.226 to 0.31 Inch |
| Impedance: | 75 Ohm |
| CATALOG DESCRIPTION: | IDEAL, COMPRESSION CONNECTOR, RTQ, F-TYPE, MATERIAL: BRASS, FINISH: NICKEL PLATED, OVERALL JACKET DIAMETER: 0.260 – 0.305 IN, COAXIAL CABLE TYPE: RG-6 REG/TRI/QUAD, DIELECTRIC DIAMETER: 0.175 – 0.183 IN |
| Category: | Coaxial & Twinaxial Connectors |
| Full Size Image | |
| Full Technical Description: | RG6 Regular/Tri-Shield/Quad Plenum Cable Type; Straight Configuration; Indoor/Outdoor, Cable, Satellite Television Application; 100 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.226 to 0.31 Inch Cable Insulation Outer Diameter; 75 Ohm Impedance; F Coupling Style; RTQ[TM] XR[TM] Brand; Band Width 3 Giga Hertz; Dielectric Diameter 0.168 to 0.183 Inch; Nut Diameter Size 7/16 Inch With 3/8 Inch-32 TPI; Cable Retention 40 Pound; 6FRTQXR Model |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 92-656 Rg6 Reg/Tri/Qd F Compression Connectors 100Jr |
| Sub-Category: | Coaxial Connector |
| UNSPSC: | 39121414 |
| UPC 12 Digit: | 783250926565 |
| Unique Product Key: | 5594009 |
| comm code enhanced: | 57110 |
