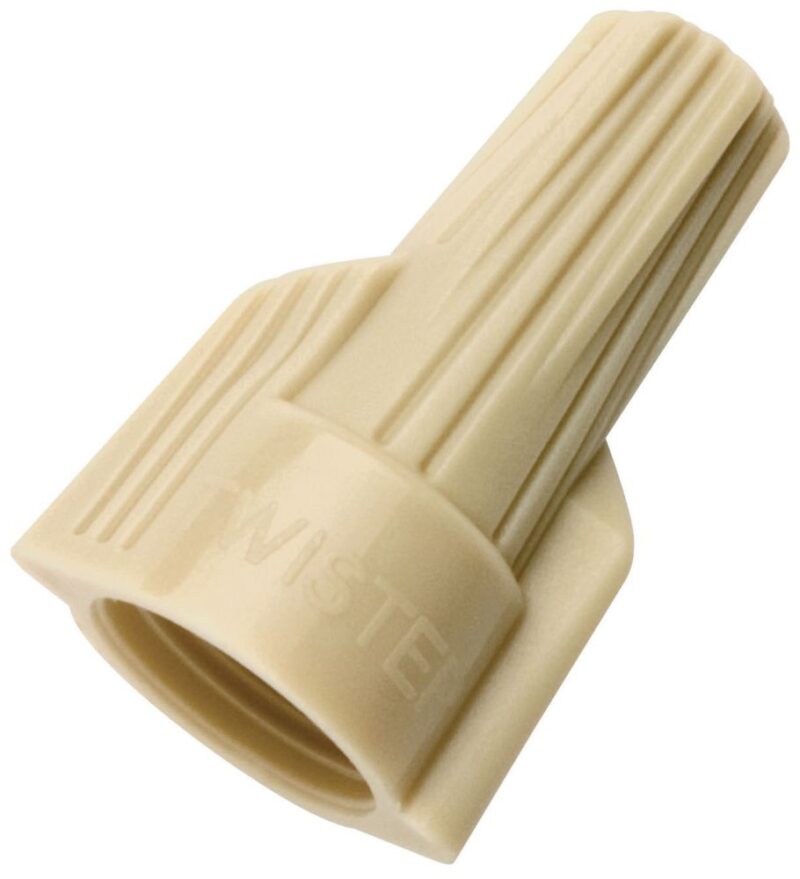

Ideal 30-341 Twister 341 Tan 100/C-Pak
$16.55
Description:
Ideal 30-341 Twister 341, Tan, 100/C-Pak
Ideal 30-341 Twister 341, Tan, 100/C-Pak
Technical Description:
Swept Wing, Ribbed Cap Type; Tan Color; (3) #22 min. Wire Combination Size; (3) #10 Max. Wire Combination Size; 22 to 8 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030341 |
| Maximum Wire Combination Size: | (3) #10 |
| Spring Type: | Live Action, Expanding Square Wire |
| Shell Material: | Thermoplastic Polyester |
| Color: | Tan |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 100 per Box |
| Approval: | UL 774A/486C, CSA C22.2, CE |
| Additional Information: | Overall Dimension 0.54 Inch Diameter x 0.72 Inch Width x 1.14 Inch Height; Strip Length 1/2 Inch; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E |
| Catalog Number: | 30-341 |
| Brand Name: | Twister[R] |
| Model: | 341 |
| Type: | Swept Wing, Ribbed Cap |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 22 to 8 AWG |
| Minimum Wire Combination Size: | (3) #22 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, TWISTER, CONDUCTOR RANGE: 22 – 8 AWG, 3/22 AWG MIN, 3/10 AWG MAX, NUMBER OF CONDUCTORS: 1 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: TAN, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 DEG F), WIRE TYPE: CU/CU, MODEL NUMBER: 341 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | Swept Wing, Ribbed Cap Type; Tan Color; (3) #22 min. Wire Combination Size; (3) #10 Max. Wire Combination Size; 22 to 8 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 100 Per Box Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Live Action, Expanding Square Wire Spring Type; Twister [R] Brand; Overall Dimension 0.54 Inch Diameter X 0.72 Inch Width X 1.14 Inch Height; Strip Length 1/2 Inch; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E; 341 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-341 Twister 341, Tan, 100/C-Pak |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250303410 |
| Unique Product Key: | 17252 |
| comm code enhanced: | 64200 |
