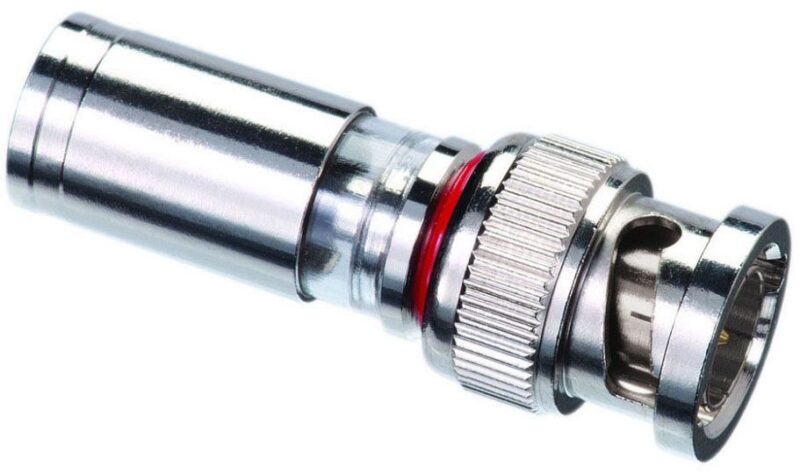

Ideal 92-704 Rg-59 Bnc Compression Connector Card Of 4
$42.64
Description:
Ideal 92-704 Rg-59 Bnc Compression Connector Card Of 4
Ideal 92-704 Rg-59 Bnc Compression Connector Card Of 4
Technical Description:
RG59 Cable Type; Straight Configuration; CCTV, Broadband Application; 4 Per Card Standard Package; Nickel Plated Brass Body Material; 0.23 to 0.25 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325092704 |
| Body Material: | Nickel Plated Brass |
| Contact Material: | Gold Plated |
| Standard Package: | 4 per Card |
| Application: | CCTV, Broadband |
| Additional Information: | BandWidth 3 GHz; Dielectric Diameter 0.142 to 0.148 Inch |
| Catalog Number: | 92-704 |
| Brand Name: | InSITE[R] |
| Coupling Style: | BNC |
| Configuration: | Straight |
| Cable Type: | RG59 |
| Center Conductor Size: | 18 to 23 AWG Solid |
| Cable Insulation Outer Diameter: | 0.23 to 0.25 Inch |
| Impedance: | 75 Ohm |
| CATALOG DESCRIPTION: | IDEAL, COMPRESSION CONNECTOR, BNC, CONDUCTOR RANGE: 029 – 042 IN, 20 – 18 AWG SOLID CENTER CONDUCTOR, MATERIAL: BRASS, FINISH: NICKEL PLATED, NOMINAL IMPEDANCE: 75 OHM, DIELECTRIC DIAMETER: 0.140 – 0.150 IN, COAXIAL CABLE TYPE: RG-59, OVERALL JACKET DIAMETER: 0.220 – 0.250 IN |
| Category: | Coaxial & Twinaxial Connectors |
| Full Size Image | |
| Full Technical Description: | RG59 Cable Type; Straight Configuration; CCTV, Broadband Application; 4 Per Card Standard Package; Nickel Plated Brass Body Material; 0.23 to 0.25 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 18 to 23 AWG Solid Center Conductor Size; BNC Coupling Style; INSITE[TM] Brand; Bandwidth 3 GHz; Dielectric Diameter 0.142 to 0.148 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 92-704 Rg-59 Bnc Compression Connector Card Of 4 |
| Sub-Category: | Coaxial Connector |
| UNSPSC: | 39121414 |
| UPC 12 Digit: | 783250927043 |
| Unique Product Key: | 6168053 |
| comm code enhanced: | 57110 |
