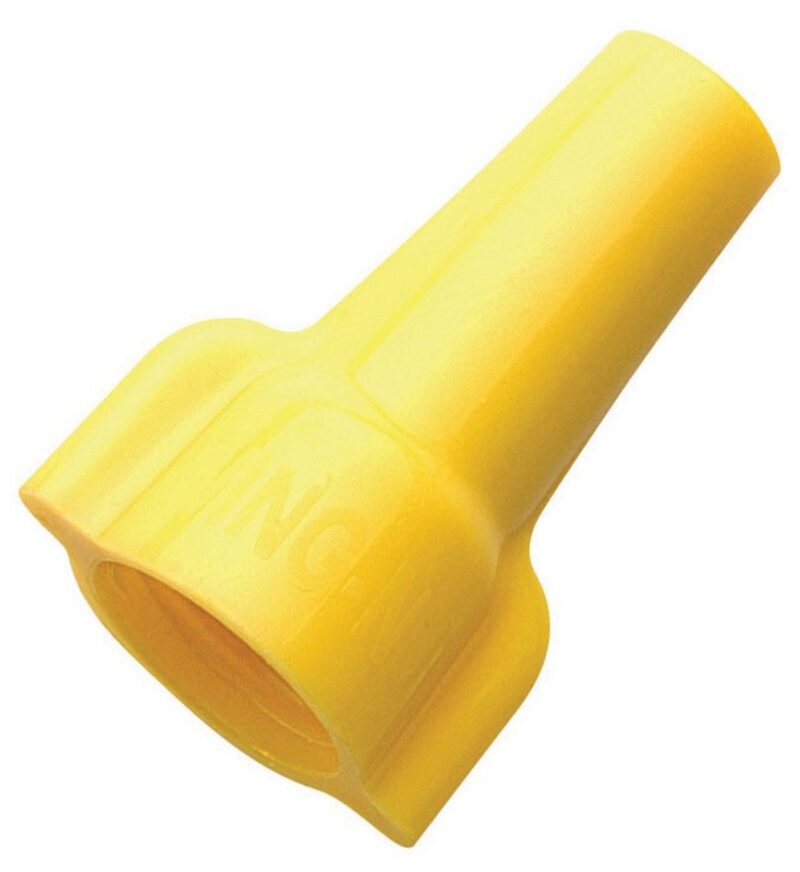

Ideal 30-651 Wing-Nut Wire Connector Model 451 Yellow 500/Bag
$59.96
Description:
Ideal 30-651 Wing-Nut Wire Connector, Model 451 Yellow, 500/Bag
Ideal 30-651 Wing-Nut Wire Connector, Model 451 Yellow, 500/Bag
Technical Description:
High Leverage, Contoured Wing Type; Yellow Color; (2) #18 min. Wire Combination Size; (3) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Sign/Luminaires) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030651 |
| Maximum Wire Combination Size: | (3) #12 |
| Spring Type: | Wide Range, Expanding, Live Action |
| Shell Material: | Thermoplastic Polyester |
| Color: | Yellow |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 500 per Bag |
| Approval: | UL 486C, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 3/8 Inch; Overall Dimension 0.48 Inch Diameter x 0.69 Inch Width x 1.03 Inch Height; Applicable Standard IEC 998-2-4 |
| Catalog Number: | 30-651 |
| Brand Name: | Wing-Nut[R] |
| Model: | 451 |
| Type: | High Leverage, Contoured Wing |
| Voltage Rating: | 600 Volt, 1000 Volt (Sign/Luminaires) |
| Wire Type: | Copper |
| Wire Size: | 18 to 10 AWG |
| Minimum Wire Combination Size: | (2) #18 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 18 – 10 AWG, MIN 2 – 18, MAX 3-12, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: YELLOW, VOLTAGE RATING: 600 V, MODEL NUMBER: 451, WIDTH: 1-1/64 IN, HEIGHT: 11/16 IN, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | High Leverage, Contoured Wing Type; Yellow Color; (2) #18 min. Wire Combination Size; (3) #12 Max. Wire Combination Size; 18 to 10 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Sign/Luminaires) Voltage Rating; 105 Deg C Temperature Rating; 500 Per Bag Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Wide Range, Expanding, Live Action Spring Type; Wing-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 3/8 Inch; Overall Dimension 0.48 Inch Diameter X 0.69 Inch Width X 1.03 Inch Height; Applicable Standard IEC 998-2-4; 451 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-651 Wing-Nut Wire Connector, Model 451 Yellow, 500/Bag |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250306510 |
| Unique Product Key: | 38923 |
| comm code enhanced: | 64200 |
