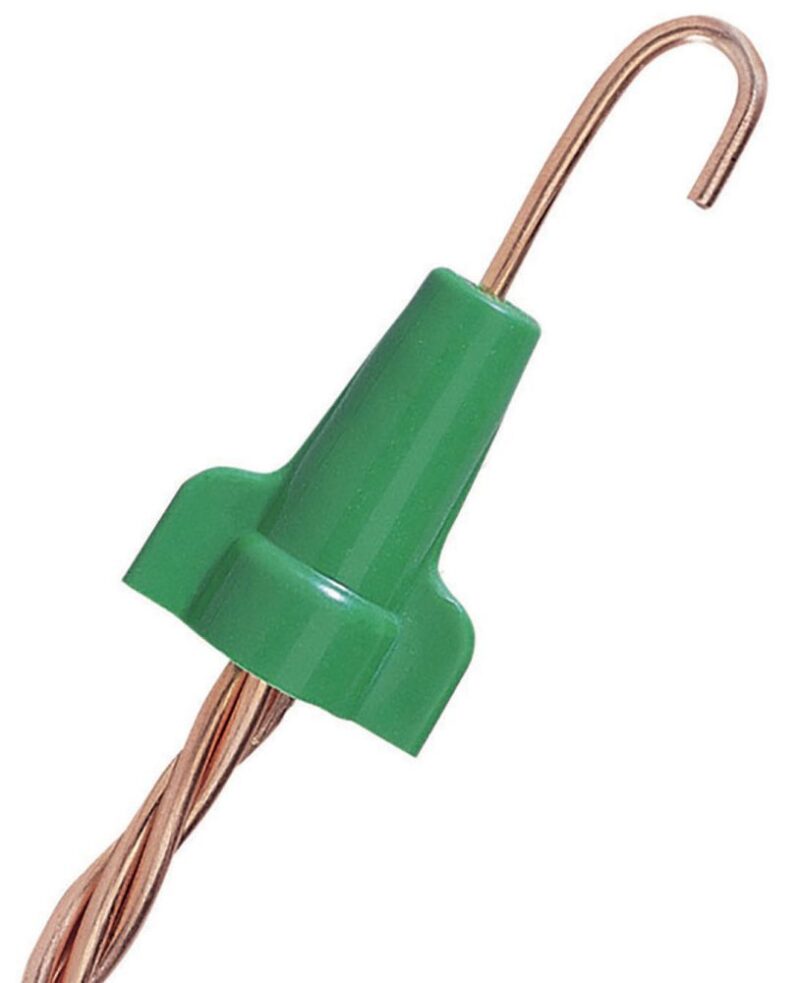

Ideal 30-092 Greenie 92 Ground Connector 100/Ctn.
$29.39
Description:
Ideal 30-092 Greenie 92 Ground Connector 100/Ctn.
Ideal 30-092 Greenie 92 Ground Connector 100/Ctn.
Technical Description:
Contoured Wing, High Leverage Type; Green Color; (2) #14 min. Wire Combination Size; (4) #12 Max. Wire Combination Size; 14 to 10 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; 100 Per Box Standard Package
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030092 |
| Maximum Wire Combination Size: | (4) #12 |
| Shell Material: | Copolymer |
| Color: | Green |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 100 per Box |
| Approval: | UL, CSA |
| Additional Information: | Flammability Rating UL 94-V2; Applicable Standard NEC 250.146/250.148 |
| Catalog Number: | 30-092 |
| Brand Name: | Greenie[R] |
| Model: | 92 |
| Type: | Contoured Wing |
| Voltage Rating: | 600 Volt |
| Wire Type: | Copper/Copper |
| Wire Size: | 14 to 10 AWG |
| Minimum Wire Combination Size: | (2) #14 |
| CATALOG DESCRIPTION: | IDEAL, GROUNDING WIRE CONNECTOR, GREENIE, TWIST-ON, NUMBER OF CONDUCTORS: 2 TO 5, CONDUCTOR RANGE: 14 – 10 AWG, MIN 2 – 14, MAX 4-12, COLOR: GREEN, MATERIAL: POLYPROPYLENE, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL, MODEL NUMBER: 92, WIDTH: 29/32 IN, HEIGHT: 1-5/32 IN, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Contoured Wing, High Leverage Type; Green Color; (2) #14 min. Wire Combination Size; (4) #12 Max. Wire Combination Size; 14 to 10 AWG Wire Size; UL, CSA Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; 100 Per Box Standard Package; Copper Wire Type; Copolymer Shell Material; Greenie [R], 92 [R] Brand; Flammability Rating UL 94-V2; Applicable Standard NEC 250-146/250-148; 92 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-092 Greenie 92 Ground Connector 100/Ctn. |
| Sub-Category: | Grounding Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250300921 |
| Unique Product Key: | 17043 |
| comm code enhanced: | 64200 |
