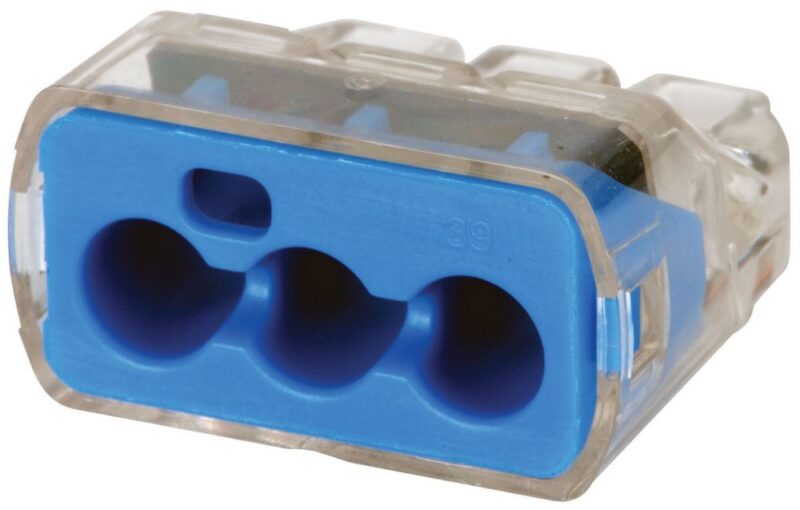

Ideal 30-1039J 10Awg Push-In 3-Port 150 Jar
$410.94
Description:
Ideal 30-1039J 10Awg,Push-In,3-Port,150 Jar
Ideal 30-1039J 10Awg,Push-In,3-Port,150 Jar
Technical Description:
Nylon/Polycarbonate Material; Blue (Face), Transparent (Housing) Color; 14 to 10 AWG (Solid), 12 to 10 AWG (19 Strands), 14 to 10 AWG (19 Strands) Tin-Bonded Stranded Wire Size; UL 467/486C, CSA C22.2, CE Approval
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325069365 |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 150 per Jar |
| Approval: | UL 467/486C, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Current Rating 30 Amp; Strip Length 3/8 to 1/2 Inch; Contact Material Copper; Finish Tin Plated; Flammability Rating UL 94-V2 |
| Catalog Number: | 30-1039J |
| Brand Name: | In-Sure[TM] |
| Model: | 39 |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Size: | 14 to 10 AWG (Solid), 12 to 10 AWG (19 Strands), 14 to 10 AWG (19 Strands) Tin-Bonded Stranded |
| Number of Ports: | 3 |
| Material: | Nylon/Polycarbonate |
| Color: | Blue (Face), Transparent (Housing) |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, IN-SURE, PUSH-IN, SIZE: 0.780 IN LENGTH X 086 IN WIDTH X 0.450 IN HEIGHT, CONNECTION: 3 PORTS, WIRE SIZE: #10 AWG – #14 AWG SOLID, #10 AWG – #12 AWG (19 STRAND OR LESS) STRANDED, #10 AWG – #14 AWG (19 STRAND OR LESS) STRANDED (TIN BONDED), COLOR: BLUE, VOLTAGE RATING: 600 V MAXIMUM BUILDING WIRE, 1000 V MAXIMUM SIGNS AND LIGHTING FIXTURES, TEMPERATURE RATING: 105 DEG C SHELL RATED, WIRE TYPE: SOLID, STRANDED, STRANDED (TIN BONDED), MODEL: 39 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Nylon/Polycarbonate Material; Blue (Face), Transparent (Housing) Color; 14 to 10 AWG (Solid), 12 to 10 AWG (19 Strands), 14 to 10 AWG (19 Strands) Tin-Bonded Stranded Wire Size; UL 467/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 150 Per Jar Standard Package; 3 Port(S); in-Sure [R] Brand; RoHS Compliant; Current Rating 30 Amp; Strip Length 3/8 to 1/2 Inch; Contact Material Copper; Finish Tin Plated; Flammability Rating UL 94-V2; 39 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-1039J 10Awg,Push-In,3-Port,150 Jar |
| Sub-Category: | Push In Wire Connector |
| UNSPSC: | 39121409 |
| UPC 12 Digit: | 783250693658 |
| Unique Product Key: | 5608494 |
| comm code enhanced: | 64200 |
