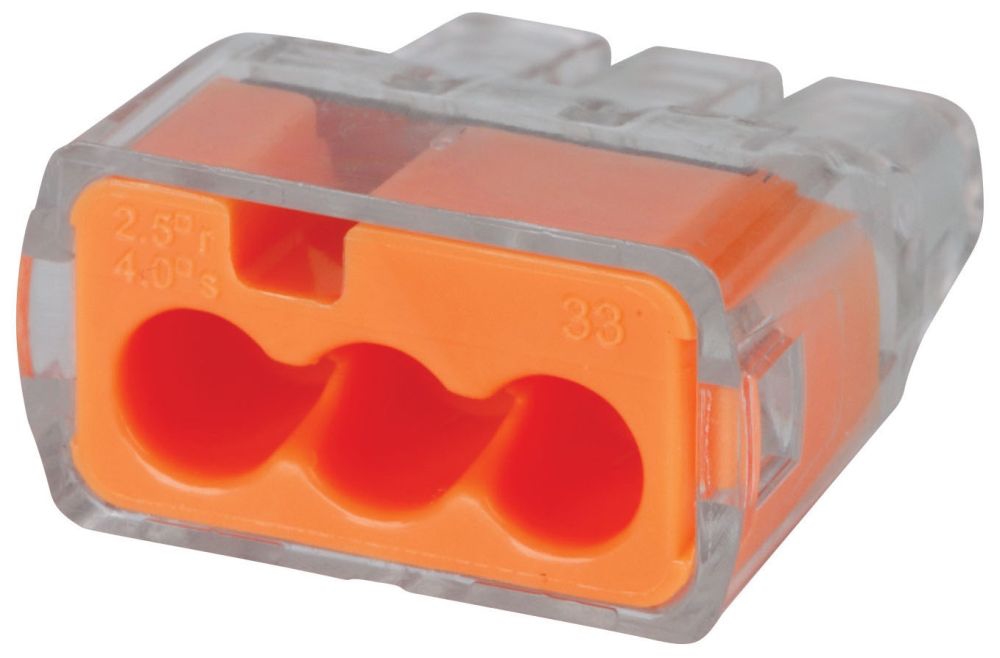

Ideal 30-1633 In-Sure Push-In Connector Model 33 3-Port 5000/Box
$754.85
Description:
Ideal 30-1633 In-Sure Push-In Connector Model 33, 3-Port, 5000/Box
Ideal 30-1633 In-Sure Push-In Connector Model 33, 3-Port, 5000/Box
Technical Description:
Nylon Material; Orange Color; 20 to 12 AWG (Solid), 16 to 12 AWG (Stranded) Wire Size; UL, CSA Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 5000 Per Box Standard Package; 3 Port(S); IN-SURE[R] Brand; 33 Model
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325067380 |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 5000 per Box |
| Approval: | UL, CSA |
| Catalog Number: | 30-1633 |
| Brand Name: | In-Sure[R] |
| Model: | 33 |
| Voltage Rating: | 600 V |
| Wire Size: | 20 to 12 AWG (Solid), 16 to 12 AWG (Stranded) |
| Number of Ports: | 3 |
| Material: | Nylon |
| Color: | Orange |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, IN-SURE, PUSH-IN, SIZE: 0.780 IN LENGTH X 0.690 IN WIDTH X 0.380 IN HEIGHT, WIRE SIZE: #12 AWG – #20 AWG SOLID, #12 AWG – #16 AWG (19 STRAND OR LESS) #18 AWG (7 STRAND) STRANDED, #14 AWG – #18 AWG (19 STRAND OR LESS) STRANDED (TIN BONDED), CONNECTION: 3 PORTS, COLOR: ORANGE, VOLTAGE RATING: 600 V MAXIMUM BUILDING WIRE, 1000 V MAXIMUM SIGNS AND LIGHTING FIXTURES, TEMPERATURE RATING: 105 DEG C SHELL RATED, WIRE TYPE: SOLID, STRANDED, STRANDED (TIN BONDED), MODEL: 33 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Nylon Material; Orange Color; 20 to 12 AWG (Solid), 16 to 12 AWG (Stranded) Wire Size; UL, CSA Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 5000 Per Box Standard Package; 3 Port(S); IN-SURE[R] Brand; 33 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-1633 In-Sure Push-In Connector Model 33, 3-Port, 5000/Box |
| Sub-Category: | Push In Wire Connector |
| UNSPSC: | 39121409 |
| UPC 12 Digit: | 783250673803 |
| Unique Product Key: | 5608507 |
| comm code enhanced: | 64200 |
