Ideal 30-311 Set Screw #11 22-16Awg
$1,522.88
Description:
Ideal 30-311 Set Screw #11 22-16Awg
Ideal 30-311 Set Screw #11 22-16Awg
Technical Description:
(1) #14, (1) #20 min. Wire Combination Size; (3) #14, (2) #18 Max. Wire Combination Size; 22 to 10 AWG Wire Size; UL 486C, CSA 22.2 Approval; 600 V Voltage Rating; 150 Deg C Temperature Rating; 1000 Per Carton Standard Package; Solid Wire Type; 11 Model
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030311 |
| Standard Package: | 1000 per Carton |
| Approval: | UL 486C, CSA 22.2 |
| Catalog Number: | 30-311 |
| Model: | 11 |
| Voltage Rating: | 600 V |
| Wire Type: | Solid |
| Wire Size: | 22 to 10 AWG |
| Minimum Wire Combination Size: | (1) #14, (1) #20 |
| Maximum Wire Combination Size: | (3) #14, (2) #18 |
| Temperature Rating: | 150 Deg C |

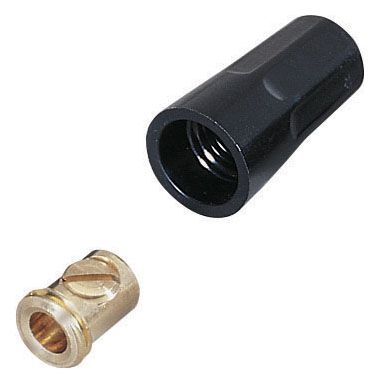

| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, SET-SCREW, SIZE: 33/64 IN WIDTH X 63/64 IN HEIGHT, NUMBER OF CONDUCTORS: 1 TO 6, WIRE SIZE: 22 – 10 AWG, MATERIAL: BRASS, FLAME-RETARDANT POLYPROPYLENE SHELL, COLOR: BRASS CONNECTOR, BLACK SHELL, VOLTAGE RATING: 600 V, TEMPERATURE RATING: 150 , 302 DEG C, DEG F, DIMENSION B: 3/8 IN, MODEL: 11, WIDTH: 33/64 IN, HEIGHT: 63/64 IN, DIMENSION D: 13/32 IN |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | (1) #14, (1) #20 min. Wire Combination Size; (3) #14, (2) #18 Max. Wire Combination Size; 22 to 10 AWG Wire Size; UL 486C, CSA 22.2 Approval; 600 V Voltage Rating; 150 Deg C Temperature Rating; 1000 Per Carton Standard Package; Solid Wire Type; 11 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-311 Set Screw #11 22-16Awg |
| Sub-Category: | Set Screw Wire Connector |
| UNSPSC: | 39121409 |
| UPC 12 Digit: | 783250303113 |
| Unique Product Key: | 5608547 |
| comm code enhanced: | 64200 |
