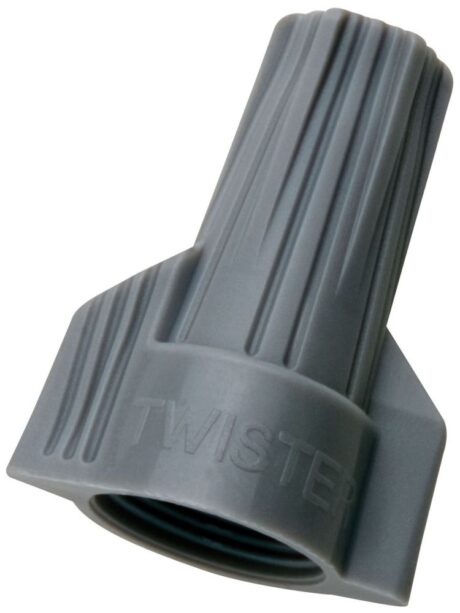

Ideal 30-342 Twister 342 Gray 50/Ctn.
$21.57
Description:
Ideal 30-342 Twister 342, Gray, 50/Ctn.
Ideal 30-342 Twister 342, Gray, 50/Ctn.
Technical Description:
Swept Wing, Ribbed Cap Type; Gray Color; (3) #14 min. Wire Combination Size; (2) #8 With (2) #12 Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030342 |
| Maximum Wire Combination Size: | (2) #8 with (2) #12 |
| Spring Type: | Live Action, Expanding Square Wire |
| Shell Material: | Thermoplastic Polyester |
| Color: | Gray |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 50 per Box |
| Approval: | UL 774A/486C, CSA C22.2, CE |
| Additional Information: | Overall Dimension 0.66 Inch Diameter x 1 Inch Width x 1.31 Inch Height; Strip Length 5/8 Inch; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E |
| Catalog Number: | 30-342 |
| Brand Name: | Twister[R] |
| Model: | 342 |
| Type: | Swept Wing, Ribbed Cap |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 18 to 6 AWG |
| Minimum Wire Combination Size: | (3) #14 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, TWISTER, NUMBER OF CONDUCTORS: 1 TO 6, CONDUCTOR RANGE: 18 – 6 AWG, 3/14 AWG MIN, 2/8 AWG WITH 2/12 AWG MAX, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: GRAY, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 DEG F), WIRE TYPE: CU/CU, MODEL NUMBER: 342 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | Swept Wing, Ribbed Cap Type; Gray Color; (3) #14 min. Wire Combination Size; (2) #8 With (2) #12 Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 50 Per Box Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Live Action, Expanding Square Wire Spring Type; Twister [R] Brand; Overall Dimension 0.66 Inch Diameter X 1 Inch Width X 1.31 Inch Height; Strip Length 5/8 Inch; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E; 342 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-342 Twister 342, Gray, 50/Ctn. |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250303427 |
| Unique Product Key: | 17324 |
| comm code enhanced: | 64200 |
