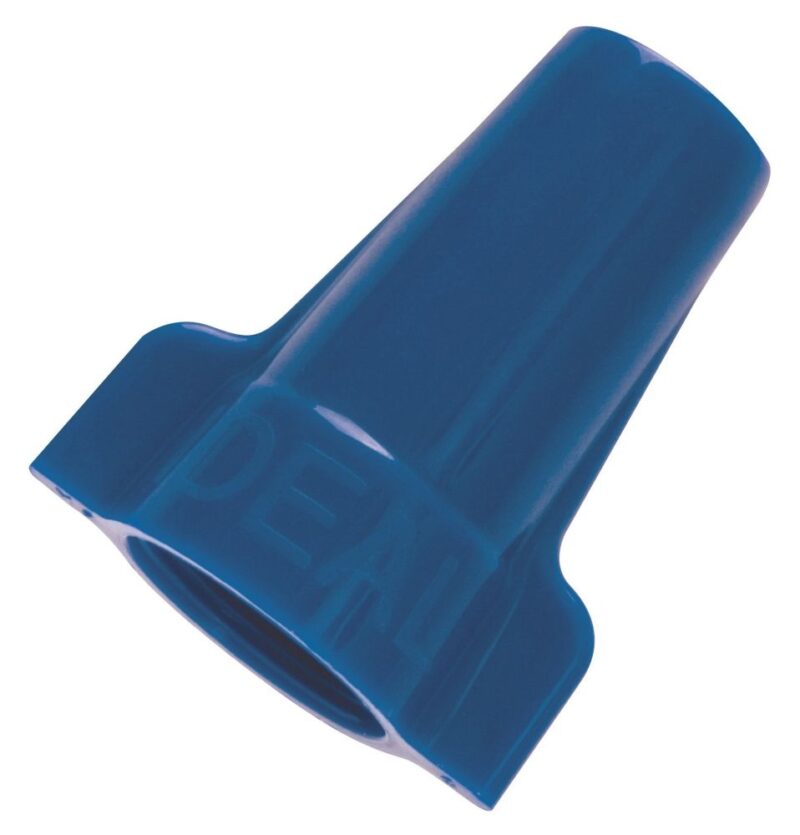

Ideal 30-654 Wing-Nut Wire Connector Model 454 Blue 100/Bag
$474.03
Description:
Ideal 30-654 Wing-Nut Wire Connector, Model 454 Blue, 100/Bag
Ideal 30-654 Wing-Nut Wire Connector, Model 454 Blue, 100/Bag
Technical Description:
High-Leverage, Contoured Wing Type; Blue Color; (3) #12 min. Wire Combination Size; (1) #6, (2) #8 Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030654 |
| Maximum Wire Combination Size: | (1) #6, (2) #8 |
| Spring Type: | Wide Range, Expanding, Live Action |
| Shell Material: | Thermoplastic Polyester |
| Color: | Blue |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 100 per Bag |
| Approval: | UL 486C, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 7/8 Inch; Overall Dimension 0.78 Inch Diameter x 1.2 Inch Width x 1.45 Inch Height; Applicable Standard IEC 998-2-4 |
| Catalog Number: | 30-654 |
| Brand Name: | Wing-Nut[R] |
| Model: | 454 |
| Type: | High-Leverage, Contoured Wing |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 14 to 6 AWG |
| Minimum Wire Combination Size: | (3) #12 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 14 – 6 AWG, MIN 3 – 12, MAX 1-6 W/2-8, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: BLUE, VOLTAGE RATING: 600 V, MODEL NUMBER: 454, FLAMMABILITY RATING: UL94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | High-Leverage, Contoured Wing Type; Blue Color; (3) #12 min. Wire Combination Size; (1) #6, (2) #8 Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 100 Per Bag Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Wide Range, Expanding, Live Action Spring Type; Wing-Nut [R], 454 [R] Brand; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 7/8 Inch; Overall Dimension 0.78 Inch Diameter X 1.2 Inch Width X 1.45 Inch Height; Applicable Standard IEC 998-2-4; 454 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-654 Wing-Nut Wire Connector, Model 454 Blue, 100/Bag |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250306541 |
| Unique Product Key: | 6167715 |
| comm code enhanced: | 64200 |
