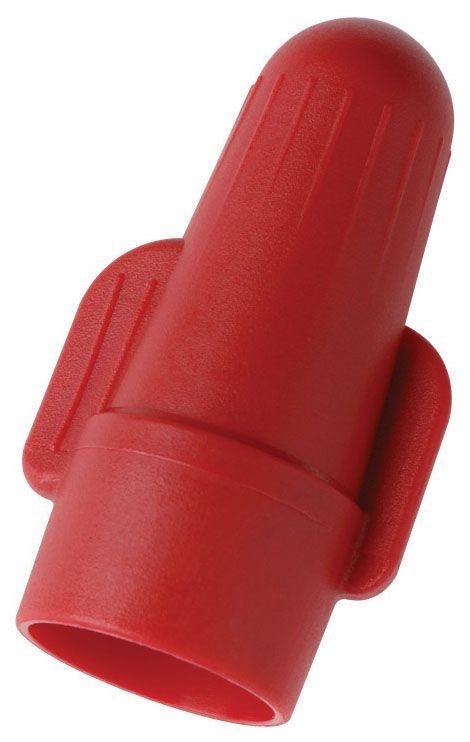

Ideal BT2-1 B-Twist Wire Connector Model Bt2 Red 100/Box
$13.27
Description:
Ideal BT2-1 B-Twist Wire Connector, Model Bt2 Red, 100/Box
Ideal BT2-1 B-Twist Wire Connector, Model Bt2 Red, 100/Box
Technical Description:
Long Swept Wing Type; Red Color; (2) #18 min. Wire Combination Size; (2) #8 Max. Wire Combination Size; 18 to 8 AWG Wire Size; UL 486C, CSA C22.2 Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 221 Deg F Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325071890 |
| Maximum Wire Combination Size: | (2) #8 |
| Spring Type: | Wide, Fast Start, Expanding |
| Shell Material: | Flame Retardant Thermoplastic |
| Color: | Red |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 100 per Box |
| Approval: | UL 486C, CSA C22.2 |
| Additional Information: | RoHS Compliant; Strip Length 1/2 Inch; Overall Dimension 14.39 Inch Diameter x 18.98 Inch Width x 33.57 Inch Height; Housing Thermoplastic Polyester; Insert Material Zinc Plated Steel; Flammability Rating UL 94V-0; Application Residential, Light Switch, H |
| Catalog Number: | BT2-1 |
| Brand Name: | B-Twist[TM] |
| Model: | BT2 |
| Type: | Long Swept Wing |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper/Copper |
| Wire Size: | 18 to 8 AWG |
| Minimum Wire Combination Size: | (2) #18 |
| CATALOG DESCRIPTION: | BUCHANAN, WIRE CONNECTOR, B-TWIST, BT2, CONDUCTOR RANGE: 18 – 8 AWG, 2/18 AWG MIN, 2/8 AWG MAX, NUMBER OF CONDUCTORS: 1 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: RED, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 DEG F), MODEL NUMBER: BT2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Technical Description: | Long Swept Wing Type; Red Color; (2) #18 min. Wire Combination Size; (2) #8 Max. Wire Combination Size; 18 to 8 AWG Wire Size; UL 486C, CSA C22.2 Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 221 Deg F Temperature Rating; 100 Per Box Standard Package; Copper/Copper Wire Type; Flame Retardant Thermoplastic Shell Material; Wide, Fast Start, Expanding Spring Type; B-TWIST[TM], BT2[R] Brand; RoHS Compliant; Strip Length 1/2 Inch; Overall Dimension 14.39 Inch Diameter X 18.98 Inch Width X 33.57 Inch Height; Housing Thermoplastic Polyester; Insert Material Zinc Plated Steel; Flammability Rating UL 94V-0; Application Residential, Light Switch, HVAC, Garage Door Opener, Multi-Gang Switch Box, Control, Illuminated Signage, Receptacle, 3-Phase Motor and Indoor; Applicable Standard IEC 998-2-4 |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal BT2-1 B-Twist Wire Connector, Model Bt2 Red, 100/Box |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250718900 |
| Unique Product Key: | 6168037 |
| comm code enhanced: | 64200 |
