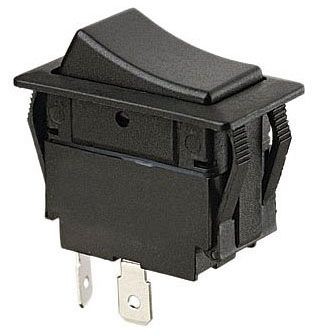

Ideal 774122 Swtc Rckr Dpdt (O)-O Spd 15A
$13.81
Description:
Ideal 774122 Swtc,Rckr,Dpdt,(O)-O,Spd,15A
Ideal 774122 Swtc,Rckr,Dpdt,(O)-O,Spd,15A
Technical Description:
Angled Type; Black Color; DPDT Contact Configuration; Momentary On/Maintained on Operation Type; UL (Canada and Us), CSA Approval; Automotive, Commercial Appliance, Industrial Control, Marine Application; 125/277 VAC Voltage Rating; Panel Mounting
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325060584 |
| Color: | Black |
| Illuminated: | Yes |
| Application: | Automotive, Commercial Appliance, Industrial Control, Marine |
| Approval: | UL (Canada and US), CSA |
| Additional Information: | Sensor Length 36 Inch |
| Catalog Number: | 774122 |
| Type: | Angled |
| Voltage Rating: | 125/277 VAC |
| Current Rating: | 20 Ampere at 125 VAC, 15 Ampere at 277 VAC |
| Operation Type: | Momentary On/Maintained on |
| Contact Configuration: | DPDT |
| Mounting: | Panel |
| Terminal Type: | Spade |
| CATALOG DESCRIPTION: | IDEAL, ROCKER SWITCH, FULL-SIZE, (ON)-ON, VOLTAGE RATING: 125, 227 VAC, AMPERAGE RATING: 20, 15 AMP, NUMBER OF POLES: 2, ACTION: DPDT, CONNECTION: SPADE, 6 TERMINALS, SIZE: 1.700 IN LENGTH X 0.970 IN WEIGHT X 190 IN HEIGHT, MOUNTING: 0.830 IN X 1.450 IN HOLE, OPERATING TEMPERATURE: 32 TO 185 DEG F, HP RATING: 2 HP AT 110 TO 250 VAC, PANEL THICKNESS: 0.125 IN |
| Category: | General Purpose Switches |
| Full Size Image | |
| Full Technical Description: | Angled Type; Black Color; DPDT Contact Configuration; Momentary On/Maintained on Operation Type; UL (Canada and Us), CSA Approval; Automotive, Commercial Appliance, Industrial Control, Marine Application; 125/277 VAC Voltage Rating; Panel Mounting; 20 Ampere at 125 VAC, 15 Ampere at 277 VAC Current Rating; Spade Terminal Type; Yes Illuminated; Sensor Length 36 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 774122 Swtc,Rckr,Dpdt,(O)-O,Spd,15A |
| Sub-Category: | Specialty Rocker Switch |
| UNSPSC: | 39122226 |
| UPC 12 Digit: | 783250605842 |
| Unique Product Key: | 5609836 |
| comm code enhanced: | 51100 |
