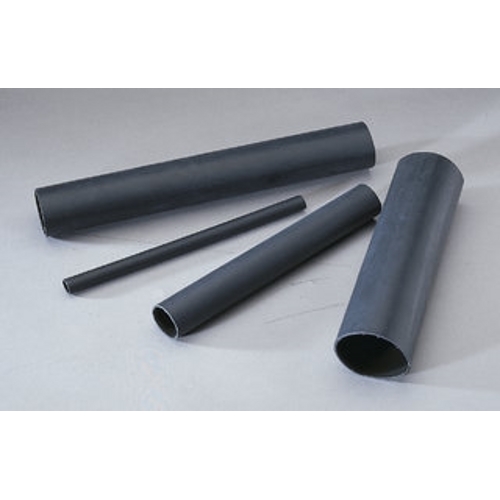

Ideal 46-372 Heat Shrink Tubing 48″
$171.92
Description:
Ideal 46-372 Heat Shrink Tubing, 48″
Ideal 46-372 Heat Shrink Tubing, 48″
Technical Description:
Heat Type; Cross-Linked Polyolefin Material; 48 Inch; 2 Inch min. Expanded Diameter; 0.63 Inch Max. Recovered Diameter; 250 to 750 kcmil Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt (Rated), 500 Volt/Mil (Dielectric) Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325046372 |
| Material: | Cross-Linked Polyolefin |
| Shrink Ratio: | 3:1 |
| Minimum Expanded Diameter: | 2 Inch |
| Maximum Recovered Diameter: | 0.63 Inch |
| Length: | 48 Inch |
| Thickness: | 0.16 Inch |
| Temperature Rating: | -55 to 110 Deg C |
| Approval: | UL 486D, CSA C22.2 |
| Additional Information: | Tensile Strength 2100 PSI; Specific Gravity 1.2; Low Temperature Brittle Point -55 Deg C; Application Underground/Underwater Splicing; Applicable Standard MIL-DTL-23053/15, IEEE 383, ANSI C37.20.2, ICEA S-19-8, NEMA |
| Catalog Number: | 46-372 |
| Brand Name: | Thermo-Shrink[R] |
| Model: | TS-46-2000 |
| Type: | Heat |
| Voltage Rating: | 600 Volt (Rated), 500 Volt/Mil (Dielectric) |
| Cable Size: | 250 to 750 KCMIL |
| Wall Type: | Heavy |
| Shrink Temperature: | 120 to 250 Deg C |
| CATALOG DESCRIPTION: | IDEAL, HEAT SHRINKABLE TUBE, THERMO-SHRINK, HEAVY-WALL HEAT SHRINK TUBING, SHRINK RATIO: 3:1, THICKNESS: 0.160 IN, LENGTH: 48 IN, VOLUME RESISTIVITY: 1013 OHM -CM MIN, DIELECTRIC STRENGTH: 500 V/MIL (20 KV MINT), CONTINUOUS OPERATING TEMPERATURE: -55 TO 110 DEG C, MINIMUM SHRINK TEMPERATURE: 120 – 250 DEG C (200 DEG C RECOMMENDED), LOW TEMPERATURE FLEXIBILITY: -55 DEG C, HEAT SHOCK: NO CRACKS, FLOWING OR DRIPPING (4 HR AT 225 DEG C), WATER ABSORPTION: 0.5 PCT, HEAT AGING: 500 PCT (168 HR AT 175 DEG C TENSILE STRENGTH ELONGATION), CABLE RANGE: 250 – 500 MCM, NOMINAL RECOVEREDI.D. (MAX.): 0.630 IN, EXPANDED I.D. (MIN.): 2, COPPER CORROSION: NON-CORROSIVE, MODEL: TS-46-2000, ULTIMATE ELONGATION: 600 PCT MIN. |
| Category: | Insulating Materials |
| Full Technical Description: | Heat Type; Cross-Linked Polyolefin Material; 48 Inch; 2 Inch min. Expanded Diameter; 0.63 Inch Max. Recovered Diameter; 250 to 750 kcmil Cable Size; UL 486D, CSA C22.2 Approval; 600 Volt (Rated), 500 Volt/Mil (Dielectric) Voltage Rating; 0.16 Inch Thickness; -55 to 110 Deg C Temperature Rating; 3:1 Shrink Ratio; Heavy Wall Type; 120 to 250 Deg C Shrink Temperature; Thermo-Shrink [R] Brand; Tensile Strength 2100 psi; Specific Gravity 1.2; Low Temperature Brittle Point -55 Deg C; Application Underground/Underwater Splicing; Applicable Standard mil-Dtl-23053/15, IEEE 3 |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 46-372 Heat Shrink Tubing, 48″ |
| Sub-Category: | Individual Cable Tubing |
| UNSPSC: | 39121723 |
| UPC 12 Digit: | 783250463725 |
| Unique Product Key: | 5582955 |
