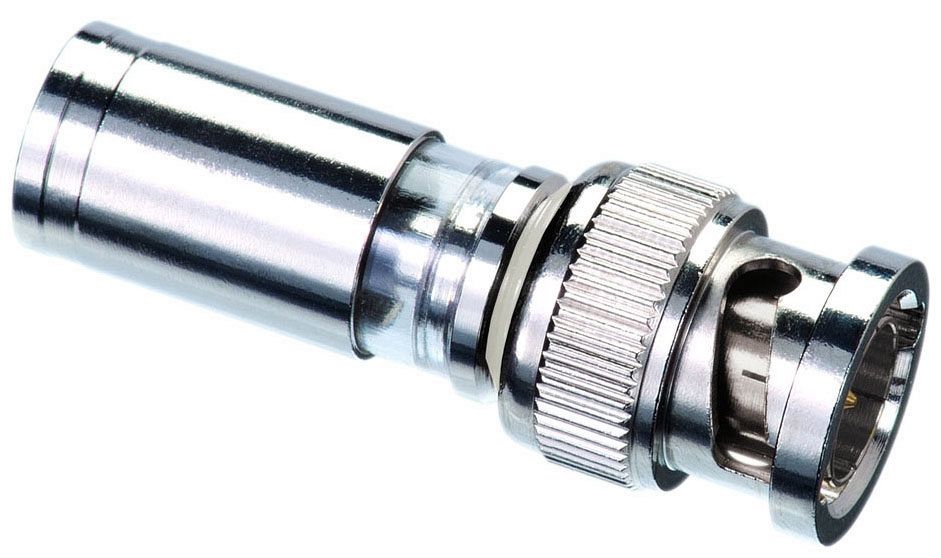

Ideal 89-049 Rg-59 Plenum Bnc Compression Connector Card Of 15
$66.87
Description:
Ideal 89-049 Rg-59 Plenum Bnc Compression Connector, Card Of 15
Ideal 89-049 Rg-59 Plenum Bnc Compression Connector, Card Of 15
Technical Description:
RG59, Plenum Cable Type; Straight Configuration; CCTV, Broadband Application; 15 Per Card Standard Package; Nickel Plated Brass Body Material; 0.193 to 0224 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089049 |
| Body Material: | Nickel Plated Brass |
| Contact Material: | Gold Plated |
| Standard Package: | 15 per Card |
| Application: | CCTV, Broadband |
| Additional Information: | BandWidth 3 GHz; Dielectric Diameter 0.134 to 14 Inch |
| Catalog Number: | 89-049 |
| Brand Name: | InSITE[R] |
| Coupling Style: | BNC |
| Configuration: | Straight |
| Cable Type: | RG59, Plenum |
| Center Conductor Size: | 18 to 23 AWG Solid |
| Cable Insulation Outer Diameter: | 0.193 to 0224 Inch |
| Impedance: | 75 Ohm |
| CATALOG DESCRIPTION: | IDEAL, COMPRESSION CONNECTOR, BNC, CONDUCTOR RANGE: 029 – 042 IN, 20 – 18 AWG SOLID CENTER CONDUCTOR, MATERIAL: BRASS, FINISH: NICKEL-PLATED, NOMINAL IMPEDANCE: 75 OHM, DIELECTRIC DIAMETER: 0.130 – 0.141 IN, COAXIAL CABLE TYPE: RG-59 PLENUM, OVERALL JACKET DIAMETER: 0.188 – 0.230 IN |
| Category: | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Full Size Image | |
| Full Technical Description: | RG59, Plenum Cable Type; Straight Configuration; CCTV, Broadband Application; 15 Per Card Standard Package; Nickel Plated Brass Body Material; 0.193 to 0224 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 18 to 23 AWG Solid Center Conductor Size; BNC Coupling Style; INSITE[TM] Brand; Bandwidth 3 GHz; Dielectric Diameter 0.134 to 14 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-049 Rg-59 Plenum Bnc Compression Connector, Card Of 15 |
| Sub-Category: | Coaxial Connector |
| UNSPSC: | 39121448 |
| UPC 12 Digit: | 783250890491 |
| Unique Product Key: | 6168034 |
| comm code enhanced: | 51300 |
