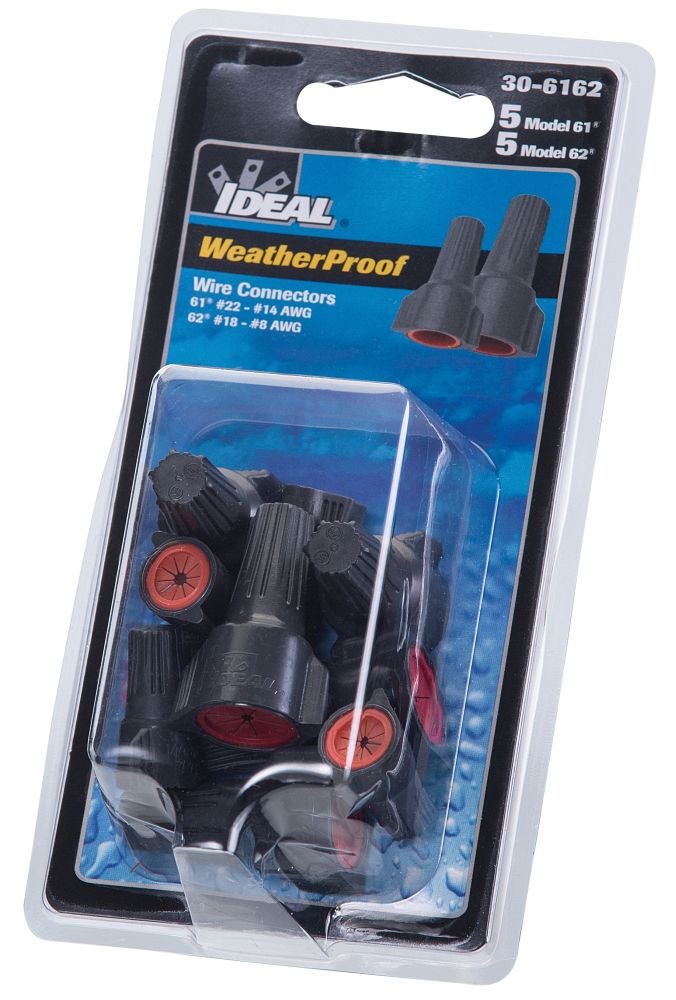

Ideal 30-6162 Wire Connector
$60.02
Description:
Ideal 30-6162 Wire Connector
Ideal 30-6162 Wire Connector
Technical Description:
Swept Wing Type; Gray/Orange, Gray/Red Color; (2) #20, (3) #18 min. Wire Combination Size; (2) #14, (2) #10 With (1) #14 Max. Wire Combination Size; 22 to 14 AWG, 18 to 8 AWG Wire Size; UL 486C/D, CSA C22.2, CE Approval
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325075813 |
| Maximum Wire Combination Size: | (2) #14, (2) #10 with (1) #14 |
| Spring Type: | Square Wire, Live Action |
| Shell Material: | Thermoplastic Polyester |
| Color: | Gray/Orange, Gray/Red |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 10 per Card |
| Approval: | UL 486C/D, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 3/8 Inch, 1/2 Inch; Overall Dimension 0.49 Inch Diameter x 0.9 Inch Height (61), 0.68 Inch Diameter x 1.38 Inch Height (62); Constructional Feature Weatherproof, Moisture Resistant, C |
| Catalog Number: | 30-6162 |
| Brand Name: | WeatherProof[TM] |
| Model: | 61/62 |
| Type: | Swept Wing |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Type: | Copper |
| Wire Size: | 22 to 14 AWG, 18 to 8 AWG |
| Minimum Wire Combination Size: | (2) #20, (3) #18 |
| CATALOG DESCRIPTION: | 61 62 WEATHRPRF ASRTD 10 CLAM |
| Category: | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Full Size Image | |
| Full Technical Description: | Swept Wing Type; Gray/Orange, Gray/Red Color; (2) #20, (3) #18 min. Wire Combination Size; (2) #14, (2) #10 With (1) #14 Max. Wire Combination Size; 22 to 14 AWG, 18 to 8 AWG Wire Size; UL 486C/D, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 10 Per Card Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Square Wire, Live Action Spring Type; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 3/8 Inch, 1/2 Inch; Overall Dimension 0.49 Inch Diameter X 0.9 Inch Height (61), 0.68 Inch Diameter X 1.38 Inch Height (62); Constructional Feature Weatherproof, Moisture Resistant, Corrosion Resistant; Flammability Rating UL 94-V2; Application Wet Location, Damp Location; 61/62 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-6162 Wire Connector |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250758135 |
| Unique Product Key: | 6168226 |
| comm code enhanced: | 51300 |
