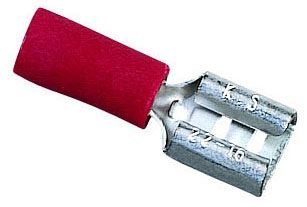

Ideal 83-9511 Vinyl Insulated Female Disconnect Terminal #22 To #18 Awg
$11.45
Description:
Ideal 83-9511 Vinyl Insulated Female Disconnect Terminal, #22 To #18 Awg
Ideal 83-9511 Vinyl Insulated Female Disconnect Terminal, #22 To #18 Awg
Technical Description:
Butted Seam Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL (Canada and Us) Approval; 75 Deg C Temperature Rating; 25 Per Pack Standard Package; Vinyl Insulated Insulation Type; 0.11 Inch X 0.02 Inch Tab Size
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325049058 |
| Standard Package: | 25 per Pack |
| Approval: | UL (Canada and US) |
| Additional Information: | Overall Dimension 0.728 Inch Length x 0.126 Inch Width; Voltage Rating 600 Volt; Insulation Diameter 0.15 Inch; Material Tin Plated Brass |
| Catalog Number: | 83-9511 |
| Type: | Butted Seam |
| Tab Size: | 0.11 Inch x 0.02 Inch |
| Minimum Conductor Size: | 22 AWG |
| Maximum Conductor Size: | 18 AWG |
| Color: | Red |
| Insulation Type: | Vinyl Insulated |
| Temperature Rating: | 75 Deg C |
| CATALOG DESCRIPTION: | IDEAL, DISCONNECT TERMINAL, VINYL INSULATED, WIRE SIZE: 22 – 18 AWG, VOLTAGE RATING: 300 V, MATERIAL: BRASS, FINISH: TIN-PLATED, INSULATION: 0.150 IN DIAMETER, CONNECTION: FEMALE, TAB SIZE: 0.110 IN X 020 IN, TEMPERATURE RATING: 75 DEG C |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Butted Seam Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL (Canada and Us) Approval; 75 Deg C Temperature Rating; 25 Per Pack Standard Package; Vinyl Insulated Insulation Type; 0.11 Inch X 0.02 Inch Tab Size; Overall Dimension 0.728 Inch Length X 0.126 Inch Width; Voltage Rating 600 Volt; Insulation Diameter 0.15 Inch; Material Tin Plated Brass |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 83-9511 Vinyl Insulated Female Disconnect Terminal, #22 To #18 Awg |
| Sub-Category: | Female Disconnect |
| UNSPSC: | 39121447 |
| UPC 12 Digit: | 783250490585 |
| Unique Product Key: | 5609998 |
| comm code enhanced: | 64110 |
Reviews
There are no reviews yet.
