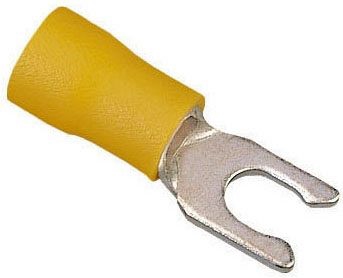

Ideal 83-7091 Terminal Vinyl Snap Spade-25 Pk
$14.11
Description:
Ideal 83-7091 Terminal, Vinyl Snap Spade-25 Pk
Ideal 83-7091 Terminal, Vinyl Snap Spade-25 Pk
Technical Description:
Snap Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CUL Approval; 75 Deg C Temperature Rating; 25 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Material Tin Plated Brass
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325049010 |
| Standard Package: | 25 |
| Approval: | UL, CUL |
| Additional Information: | MATERIAL TIN PLATED BRASS; BRAZED/BUTTED SEAM PREVENT SPLITTING; WIRE INSULATION DIAMETER 0.248 INCH |
| Catalog Number: | 83-7091 |
| Type: | Snap |
| Minimum Conductor Size: | 12 AWG |
| Maximum Conductor Size: | 10 AWG |
| Color: | Yellow |
| Insulation Type: | Vinyl Insulated |
| Stud Size: | #10 |
| Temperature Rating: | 75 Deg C |
| CATALOG DESCRIPTION: | IDEAL, SPADE TERMINAL, VINYL SNAP SPADE, CABLE SIZE: 12 – 10 AWG, STUD SIZE: 10 IN, INSULATION: VINYL INSULATED, MATERIAL: TIN PLATED BRASS |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Snap Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CUL Approval; 75 Deg C Temperature Rating; 25 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Material Tin Plated Brass; Brazed/Butted Seam Prevent Splitting; Wire Insulation Diameter 0.248 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 83-7091 Terminal, Vinyl Snap Spade-25 Pk |
| Sub-Category: | Fork Lug |
| UNSPSC: | 39121405 |
| UPC 12 Digit: | 783250490103 |
| Unique Product Key: | 5609959 |
| comm code enhanced: | 64110 |
