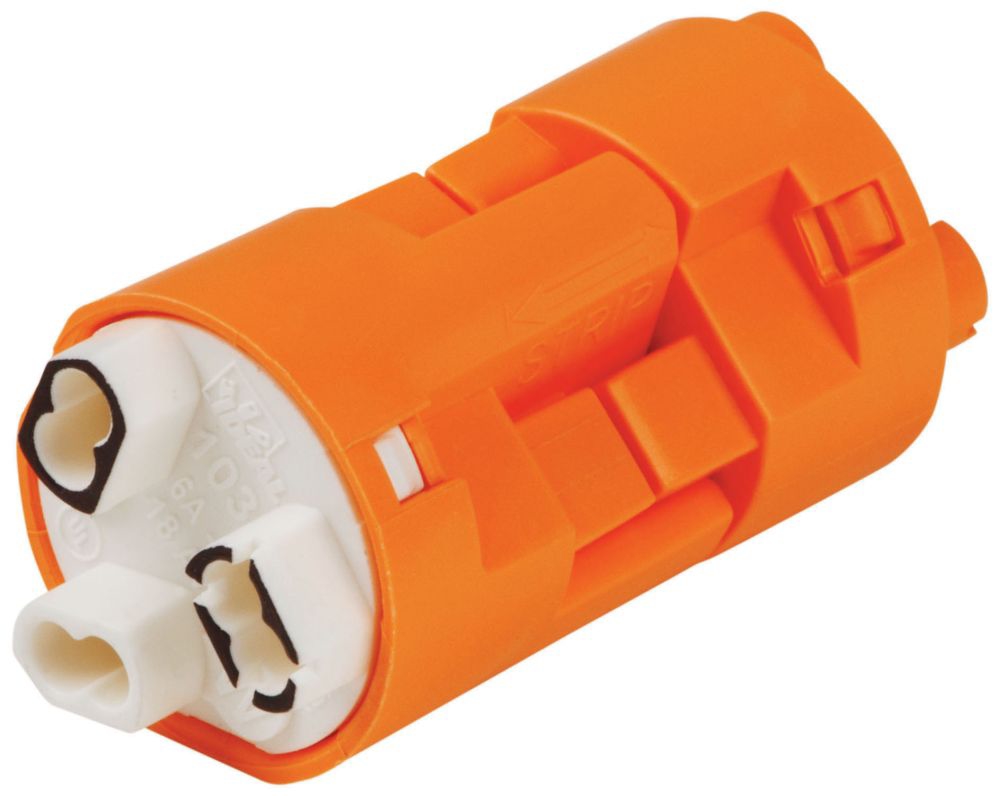

Ideal 30-353XJ Powerplug Disconnect 100/Jar Model 103X
$1,204.88
Description:
Ideal 30-353XJ Powerplug Disconnect 100/Jar Model 103X
Ideal 30-353XJ Powerplug Disconnect 100/Jar Model 103X
Technical Description:
Orange Color; 18 to 12 AWG (Solid), 14 to 12 AWG (Stranded) Wire Size; UL 2459, CSA C22.2 Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 100 Per Jar Standard Package; 3 Port(S); POWERPLUG[R] Brand; Current Rating 6 Ampere
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325070264 |
| Standard Package: | 100 per Jar |
| Approval: | UL 2459, CSA C22.2 |
| Additional Information: | Current Rating 6 Ampere; Knockout Size 1/2 Inch |
| Catalog Number: | 30-353XJ |
| Brand Name: | PowerPlug[R] |
| Model: | 103 |
| Voltage Rating: | 600 V |
| Wire Size: | 18 to 12 AWG (Solid), 14 to 12 AWG (Stranded) |
| Number of Ports: | 3 |
| Color: | Orange |
| Temperature Rating: | 221 Deg F |
| CATALOG DESCRIPTION: | IDEAL, LUMINAIRE DISCONNECT, POWERPLUG, 3-WIRE STANDARD VERSION, WIRE SIZE: 12 – 18 AWG SOLID, 12 – 14 AWG STRANDED, 12 – 14, 16, 18 AWG STRANDED TIN-BONDED, VOLTAGE RATING: 600 V, MATERIAL: NYLON HOUSING, COPPER ALLOY CONTACTS, AMPERAGE RATING: 6 AMP, COLOR: ORANGE, MODEL: 103 |
| Category: | Small Terminals & Connectors |
| Full Size Image | |
| Full Technical Description: | Orange Color; 18 to 12 AWG (Solid), 14 to 12 AWG (Stranded) Wire Size; UL 2459, CSA C22.2 Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 100 Per Jar Standard Package; 3 Port(S); POWERPLUG[R] Brand; Current Rating 6 Ampere; Knockout Size 1/2 Inch; 103 Model |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Material Safety Data Sheet (MSDS) | |
| Product Brochure | |
| Product Description: | Ideal 30-353XJ Powerplug Disconnect 100/Jar Model 103X |
| Sub-Category: | Push In Wire Connector |
| UNSPSC: | 39121447 |
| UPC 12 Digit: | 783250702640 |
| Unique Product Key: | 6168015 |
| comm code enhanced: | 64110 |
