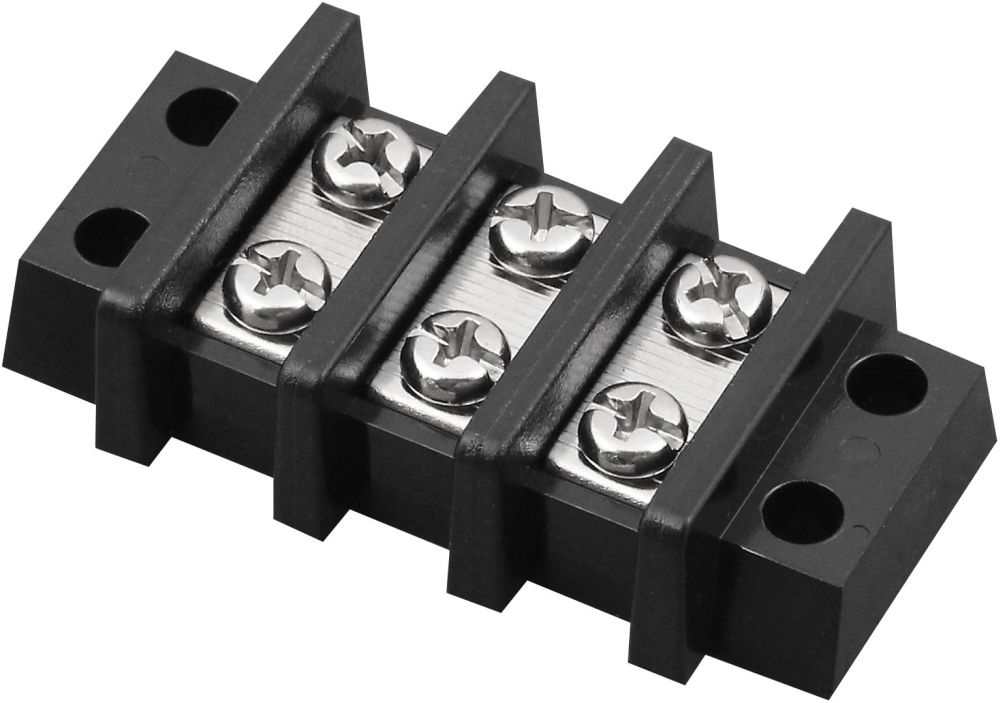

Ideal 89-203 Terminal Strip 3 Circuit Cap.
$9.01
Description:
Ideal 89-203 Terminal Strip, 3 Circuit Cap.
Ideal 89-203 Terminal Strip, 3 Circuit Cap.
Technical Description:
Center Spacing Type; Black Color; 22 to 10 AWG (Copper) Wire Size; UL, CSA Approval; 600 V (Ul/Csa) Voltage Rating; Surface Mounting; 30 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089203 |
| Cover Type: | No |
| Temperature Rating: | -40 to 130 Deg C |
| Housing Material: | Rugged Polyester Thermoplastic |
| Color: | Black |
| Mounting: | Surface |
| Approval: | UL, CSA |
| Additional Information: | Torque Rating 16 Lb-Inch; Center Spacing 0.562 Inch; Screw Material Zinc Plated Steel |
| Catalog Number: | 89-203 |
| Model: | 89-200 |
| Type: | Center Spacing |
| Number of Circuits: | 3 |
| Voltage Rating: | 600 V (UL/CSA) |
| Current Rating: | 30 Ampere (UL/CSA) |
| Wire Size: | 22 to 10 AWG (Copper) |
| Terminal Type: | #8-32 TPI Philips Slotted Screw |
| CATALOG DESCRIPTION: | IDEAL, TERMINAL STRIP, WIRE SIZE: 22 – 10 AWG, SPACING: 0.562 IN, AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 V, MATERIAL: ZINC-PLATED STEEL SCREW, NUMBER OF CIRCUITS: 3, TORQUE RATING: 16 IN-LB, TERMINAL SCREW SIZE: 3 |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Center Spacing Type; Black Color; 22 to 10 AWG (Copper) Wire Size; UL, CSA Approval; 600 V (Ul/Csa) Voltage Rating; Surface Mounting; 30 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating; Rugged Polyester Thermoplastic Housing Material; #8-32 TPI Philips Slotted Screw Terminal Type; 3 Circuit(S); Torque Rating 16 lb-Inch; Center Spacing 0.562 Inch; Screw Material Zinc Plated Steel; 89-200 Model |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-203 Terminal Strip, 3 Circuit Cap. |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250892037 |
| Unique Product Key: | 5610139 |
| comm code enhanced: | 64400 |
