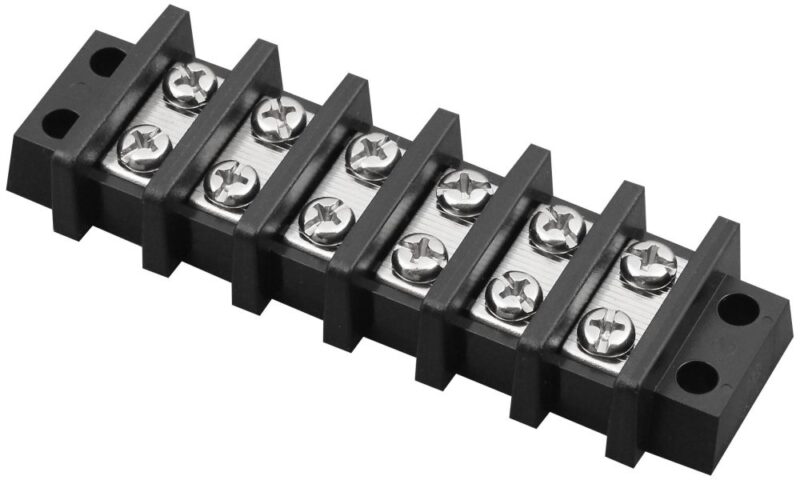

Ideal 89-206 Terminal Strip 6 Circuit Cap.
$17.87
Description:
Ideal 89-206 Terminal Strip, 6 Circuit Cap.
Ideal 89-206 Terminal Strip, 6 Circuit Cap.
Technical Description:
Center Spacing Type; 4.37 Inch Length X 1.33 Inch Width X 0.81 Inch Height Size; 22 to 10 AWG (Copper) Wire Size; UL, CSA Approval; 250/600 Volt (Ul/Csa) Voltage Rating; Surface Mounting; 30 Amp (Ul/Csa) Current Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089206 |
| Size: | 4.37 Inch Length x 1.33 Inch Width x 0.81 Inch Height |
| Temperature Rating: | -40 to 130 Deg C |
| Housing Material: | Rugged Polyester Thermoplastic |
| Mounting: | Surface |
| Approval: | UL, CSA |
| Additional Information: | Torque Rating 16 Inch-Pound; Center Spacing 0.562 Inch; Screw Material Zinc Plated Steel |
| Catalog Number: | 89-206 |
| Model: | 89-200 |
| Type: | Center Spacing |
| Number of Circuits: | 6 |
| Voltage Rating: | 250/600 Volt (UL/CSA) |
| Current Rating: | 30 Amp (UL/CSA) |
| Wire Size: | 22 to 10 AWG (Copper) |
| Terminal Type: | #8-32 TPI Philips Slotted Screw |
| CATALOG DESCRIPTION: | IDEAL, TERMINAL STRIP, WIRE SIZE: 22 – 10 AWG, SPACING: 0.562 IN, AMPERAGE RATING: 30 AMP, VOLTAGE RATING: 600 V, MATERIAL: ZINC-PLATED STEEL SCREW, NUMBER OF CIRCUITS: 6, TORQUE RATING: 16 IN-LB, TERMINAL SCREW SIZE: 6 |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Center Spacing Type; 4.37 Inch Length X 1.33 Inch Width X 0.81 Inch Height Size; 22 to 10 AWG (Copper) Wire Size; UL, CSA Approval; 250/600 Volt (Ul/Csa) Voltage Rating; Surface Mounting; 30 Amp (Ul/Csa) Current Rating; -40 to 130 Deg C Temperature Rating; Rugged Polyester Thermoplastic Housing Material; #8-32 TPI Philips Slotted Screw Terminal Type; 6 Circuit(S); Torque Rating 16 Inch-Pound; Center Spacing 0.562 Inch; Screw Material Zinc Plated Steel; 89-200 Model |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-206 Terminal Strip, 6 Circuit Cap. |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250892068 |
| Unique Product Key: | 5610141 |
| comm code enhanced: | 64400 |
