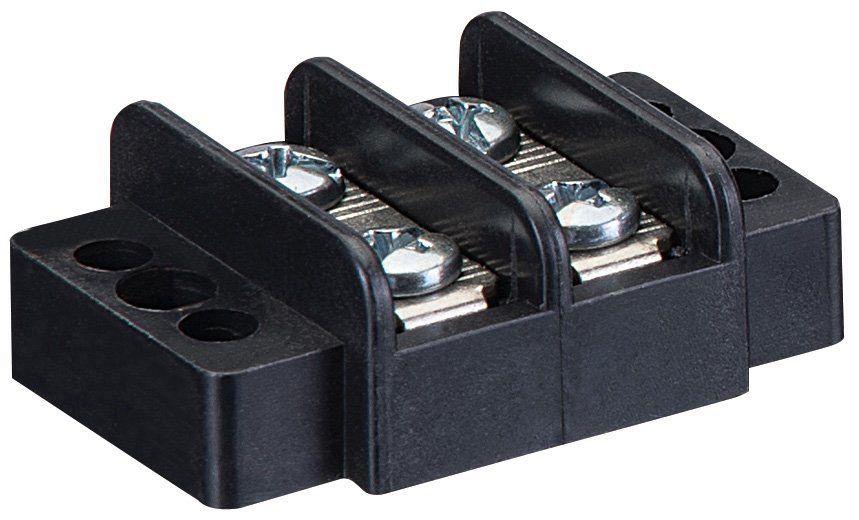

Ideal 89-406 Double Row Terminal Block (6)
$17.22
Description:
Ideal 89-406 Double Row Terminal Block (6)
Ideal 89-406 Double Row Terminal Block (6)
Technical Description:
Center Spacing Type; Black Color; 22 to 12 AWG (Copper) Wire Size; UL, CSA Approval; 300 V (Ul/Csa) Voltage Rating; Surface Mounting; 30 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089406 |
| Cover Type: | No |
| Temperature Rating: | -40 to 130 Deg C |
| Housing Material: | Rugged Polyester Thermoplastic |
| Color: | Black |
| Mounting: | Surface |
| Approval: | UL, CSA |
| Additional Information: | Torque Rating 9 Lb-Inch; Center Spacing 0.437 Inch; Screw Material Zinc Plated Steel |
| Catalog Number: | 89-406 |
| Model: | 89-400 |
| Type: | Center Spacing |
| Number of Circuits: | 6 |
| Voltage Rating: | 300 V (UL/CSA) |
| Current Rating: | 30 Ampere (UL/CSA) |
| Wire Size: | 22 to 12 AWG (Copper) |
| Terminal Type: | #6-32 TPI Philips Slotted Screw |
| CATALOG DESCRIPTION: | IDEAL, TERMINAL STRIP, WIRE SIZE: 22 – 12 AWG, SPACING: 0.437 IN, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 250 V, MATERIAL: ZINC-PLATED STEEL SCREW, NUMBER OF CIRCUITS: 6, TORQUE RATING: 9 IN-LB, TERMINAL SCREW SIZE: 6 |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Center Spacing Type; Black Color; 22 to 12 AWG (Copper) Wire Size; UL, CSA Approval; 300 V (Ul/Csa) Voltage Rating; Surface Mounting; 30 Ampere (Ul/Csa) Current Rating; No Cover Type; -40 to 130 Deg C Temperature Rating; Rugged Polyester Thermoplastic Housing Material; #6-32 TPI Philips Slotted Screw Terminal Type; 6 Circuit(S); Torque Rating 9 lb-Inch; Center Spacing 0.437 Inch; Screw Material Zinc Plated Steel; 89-400 Model |
| Made in USA: | Yes |
| Manufacturer: | IDEAL INDUSTRIES INC |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-406 Double Row Terminal Block (6) |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250894062 |
| Unique Product Key: | 5610169 |
| comm code enhanced: | 64400 |
