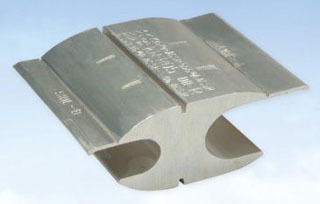

Penn-Union KR-R05 Press-On Connector
$33.54
Description:
Penn-Union KR-R05 Press-On Connector
Penn-Union KR-R05 Press-On Connector
Technical Description:
Extruded High Conductivity Aluminum Body; Shape H; Conductor Material Copper/Aluminum/Acsr; Die Index R; Approval RUS; KR-R Model
- Description
- Reviews (0)
Description
Product Specifications
| Category: | Large Terminals & Connectors |
| Full Technical Description: | 1/0 AWG (Acsr/Aluminum Alloy, Standard, Size B), 2/0 AWG (Compressed ACSR, Size B), 2/0 AWG Stranded (Copper/Aluminum, Standard, Size B), 3/0 AWG Solid (Copper/Aluminum, Standard, Size B), 3/0 AWG Stranded (Compressed, Size B), 477 kcmil (Acsr/Aluminum Al min. Run Conductor Size; 4/0 AWG Solid (Copper/Aluminum, Standard, Size B), 336 kcmil (Acsr/Aluminum Alloy, Standard, Size B), 350 kcmil Stranded (Copper/Aluminum, Standard, Size B), 397 kcmil (Compressed ACSR, Size B), 397 kcmil Stranded (Compressed, Size B), 795 kcmil (Acsr/Alu Max. Run Conductor Size; 1/0 AWG (Acsr/Aluminum Alloy, Standard, Size B), 2/0 AWG (Compressed ACSR, Size B), 2/0 AWG Stranded (Copper/Aluminum, Standard, Size B), 3/0 AWG Solid (Copper/Aluminum, Standard, Size B), 3/0 AWG Stranded (Compressed, Size B), 477 kcmil (Acsr/Aluminum Al min. Tap Conductor Size; 4/0 AWG Solid (Copper/Aluminum, Standard, Size B), 336 kcmil (Acsr/Aluminum Alloy, Standard, Size B), 350 kcmil Stranded (Copper/Aluminum, Standard, Size B), 397 kcmil (Compressed ACSR, Size B), 397 kcmil Stranded (Compressed, Size B), 795 kcmil (Acsr/Alu Max. Tap Conductor Size; H Shape; Copper/Aluminum/Acsr Conductor Material; RUS Approval; Extruded High Conductivity Aluminum Body Material; R Die Index; KR-R Model |
| Manufacturer: | Penn-Union Corp. |
| Manufacturer Brand: | Penn-Union Corp. |
| Product Description: | Penn-Union KR-R05 Press-On Connector |
| Sub-Category: | Compression Cable Tap |
| UNSPSC: | 39121428 |
| UPC 12 Digit: | 785037418904 |
| Unique Product Key: | 6073401 |
| comm code enhanced: | 64120 |
