DROP-ON-BAR SLIDER BRACKET FOR PANCAKE & MULTIGANG BOXES BARB-SLIM
$1.16
Drop-On-Bar Slider Bracket Slim
- Description
- Additional information
- Reviews (0)
Description
| Category | PREFAB |
| Page | Prefab12 |
| Description: | |
| Orbit’s Slim Drop-On-Bar Slider Bracket, BARB-SLIM, delivers a streamlined solution for 4” Pancake Boxes and Multigang boxes in Prefab applications. Compatible with Orbit’s Adjustable Bar Hangers (BHA-16 & BHA-24), the BARB-SLIM allows for fast, efficient installation. Ideal for vanity light setups when paired with a 4” Pancake Box or other compact electrical applications. Two BARB-SLIM brackets can securely mount a Multigang box onto BHA-16 or BHA-24. See BARB & BARB-CS for Drop-On-Bar Slider Brackets that mount 4” & 4-11/16” Sq. Boxes. | |
| Features: | |

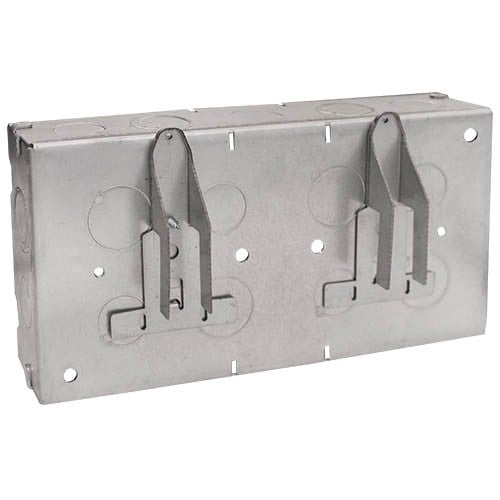

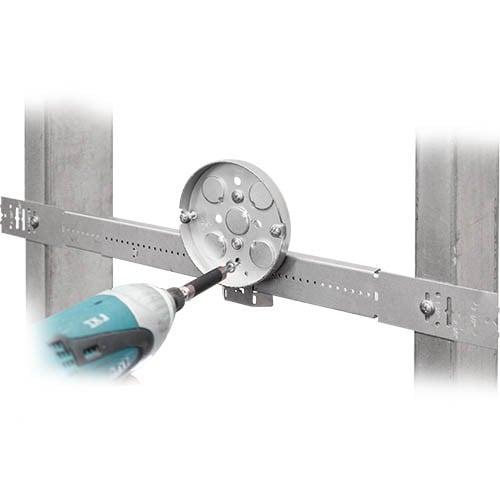

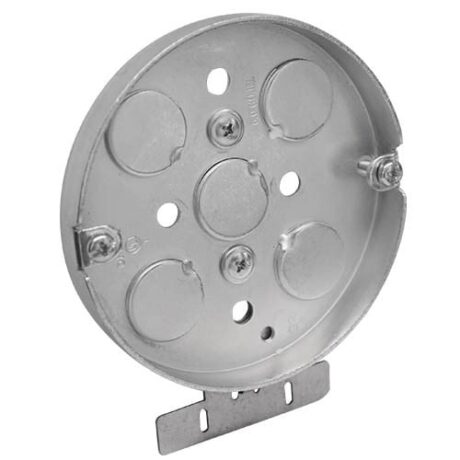

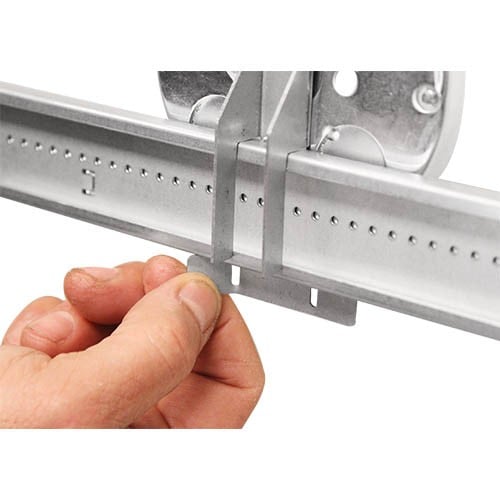

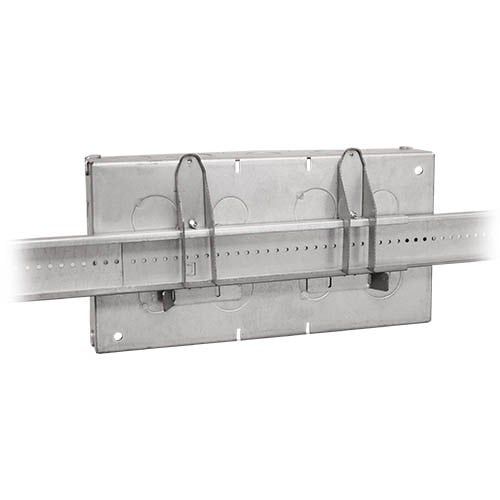

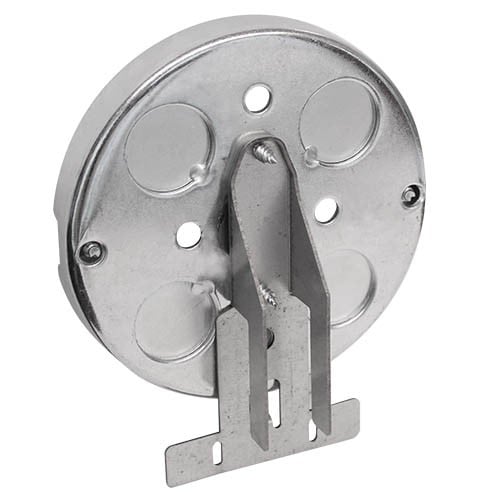

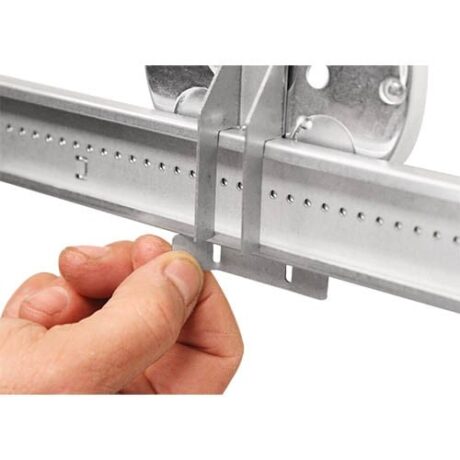

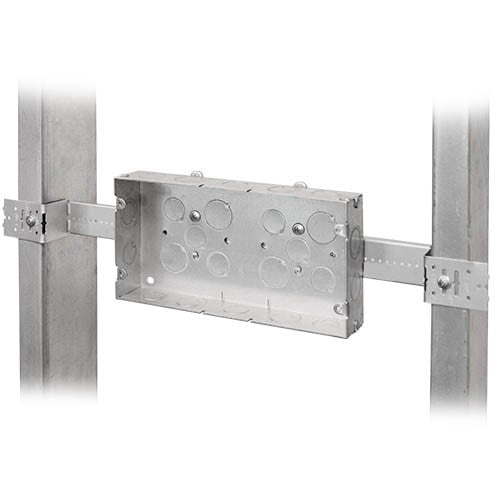

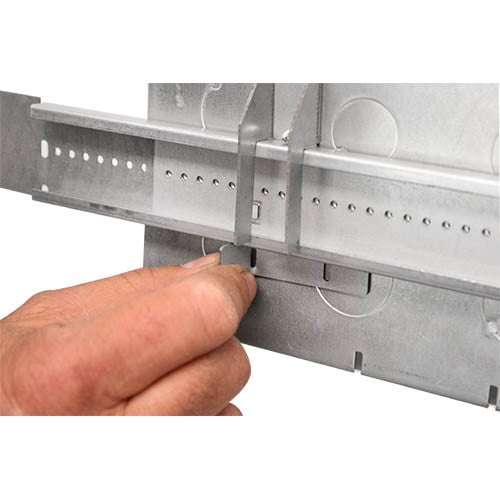

| – Ideal Prefab solution for mounting vanity lights. – Allows use of back K.O. for vanity light. – Use one BARB-SLIM to mount a 4” Pancake Box and two BARB-SLIM’s to mount Multigang boxes. – For 4” Pancake Box Installation: ● Mount using two sharp point wafer head screws; box center positioned 1-1/2” above the BHA-16 or BHA-24 centerline for K.O. access. ● Mount the Bar Hanger 1-1/2” lower than the desired fixture position to align the Pancake Box center with the intended fixture height. – For Multigang Box Installation: Securely mount with two BARB-SLIM brackets, each using one sharp point wafer head screw. – Easily drops onto BHA-16 & BHA-24 Adjustable Bar Hangers. Can be installed between ceiling joists or wall studs. – Allows for precise box (Vanity Fixture) positioning along the bar hanger before securing with just one Tek Screw. – Multiple box assemblies can be easily added before and after the Bar Hanger is installed. – Installation Instructions |
|
| Certifications: | |
   |
|
| UL File Number: | |
| E310661* | |
| E227970** | |
| Literature | |
Catalog
|
UPC |
Description |
Std.
|
CTN WT |
| BARB-SLIM* | 8-35243-04187-5 | Slim Drop-On-Bar Slider Bracket | 50 | 3.2 lbs. |
| BHA-16** | 8-35243-00128-2 | 11″ to 18″ Adjustable box bracket-Mount Box with self-tapping screws on notches between ceiling joists or wall studs. Ends bend and wrap around stud-Can be used with boxes 1-1/2″, 2-1/8″ or 2-1/2” Deep | 50 | 25.36 lbs. |
| BHA-24** | 8-35243-00129-9 | 15-3/4″ to 26″ Adjustable box bracket-Mount Box with self-tapping screws on notches between ceiling joists or wall studs. Ends bend and wrap around stud-Can be used with boxes 1-1/2″, 2-1/8″ or 2-1/2” Deep | 50 | 33.06 lbs. |
Additional information
| Weight | 3.2 kg |
|---|
