ADJUSTABLE BAR HANGERS FOR STUD WALLS & CEILING JOISTS
$4.23
15-3/4″ To 26″ Adjustable Box Bracket
- Description
- Additional information
- Reviews (0)
Description
| Category | SWITCH BOX | |
| Page | P9 | |
| Description: | ||

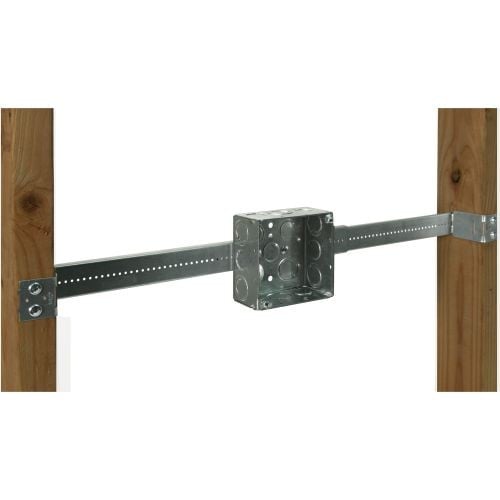

| Orbit’s Adjustable Bar Hangers are available in 11” to 18” (BHA-16) and 15-3/4” to 26” (BHA-24) adjustment ranges, with notches for mounting box with self-tapping screws. Can be installed between ceiling joists or wall studs. | ||
| Features: | ||

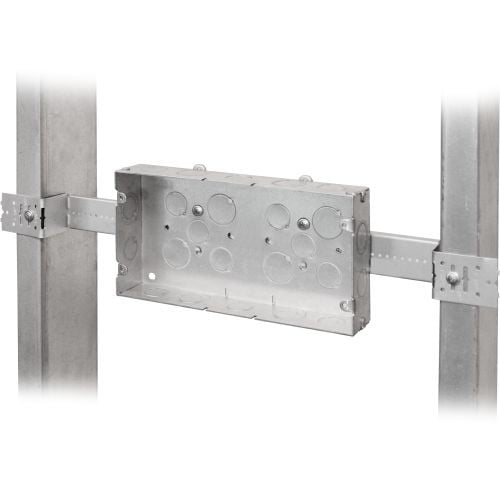

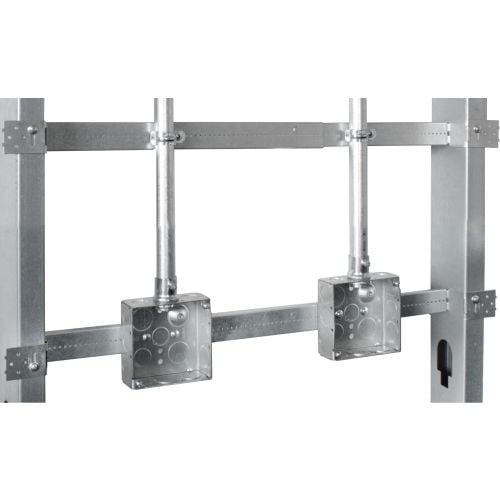

| – Ends bend and wrap around stud – Can be used with boxes 1-1/2”, 2-1/8”, or 2-1/2″ deep – Can be installed between ceiling joists or wall studs – Ships preassembled – No sharp edges |
||
| Specifications: | ||
| Material | Sheet Steel | |
| Certifications: | ||
  |
||
| UL File Number: | ||
| E227970 | ||
| CAT NO | UPC | DESCRIPTION | STD PKG |

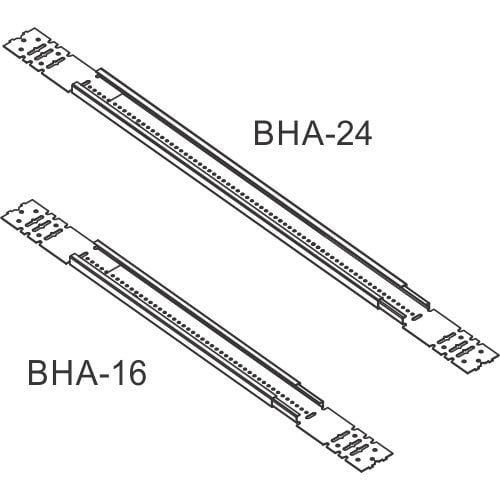

| BHA-16 | 8-35243-00128-2 | 11” to 18” Adjustable Bar Hanger | 50 |
| BHA-24 | 8-35243-00129-9 | 15-3/4” to 26” Adjustable Bar Hanger | 50 |
Additional information
| Weight | 33.08 kg |
|---|
