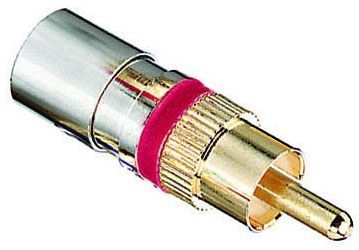

Ideal 89-570 Rg59 Rca Compression Connector 35/Jar
$101.54
Description:
Ideal 89-570 Rg59 Rca Compression Connector 35/Jar
Ideal 89-570 Rg59 Rca Compression Connector 35/Jar
Technical Description:
RG59 Cable Type; Straight Configuration; 35 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.23 to 0.27 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 20 to 18 AWG Solid Center Conductor Size
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089570 |
| Body Material: | Nickel Plated Brass |
| Contact Material: | Gold Plated |
| Standard Package: | 35 per Jar |
| Additional Information: | BandWidth 3 GHz; Dielectric Diameter 0.142 to 0.148 Inch |
| Catalog Number: | 89-570 |
| Brand Name: | RTQ[R] |
| Coupling Style: | RCA |
| Configuration: | Straight |
| Cable Type: | RG59 |
| Center Conductor Size: | 20 to 18 AWG Solid |
| Cable Insulation Outer Diameter: | 0.23 to 0.27 Inch |
| Impedance: | 75 Ohm |
| CATALOG DESCRIPTION: | IDEAL, COMPRESSION CONNECTOR, RCA, CONDUCTOR RANGE: 029 – 042 IN, 20 – 18 AWG CENTER SOLID CONDUCTOR, MATERIAL: BRASS, FINISH: NICKEL-PLATED, NOMINAL IMPEDANCE: 75 OHM, COAXIAL CABLE TYPE: RG-59, BANDWIDTH: 3 GHZ, DIELECTRIC DIAMETER: 0.142 – 0.150 IN, OVERALL JACKET DIAMETER: 0.230 – 0.270 IN |
| Category: | Coaxial & Twinaxial Connectors |
| Full Size Image | |
| Full Technical Description: | RG59 Cable Type; Straight Configuration; 35 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.23 to 0.27 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 20 to 18 AWG Solid Center Conductor Size; RCA Coupling Style; RTQ[TM] Brand; Bandwidth 3 GHz; Dielectric Diameter 0.142 to 0.148 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-570 Rg59 Rca Compression Connector 35/Jar |
| Sub-Category: | Coaxial Connector |
| UNSPSC: | 39121414 |
| UPC 12 Digit: | 783250895700 |
| Unique Product Key: | 5610198 |
| comm code enhanced: | 57110 |
