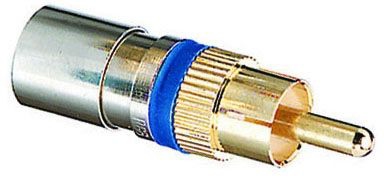

Ideal 89-580 Rg6 Rca Compression Connector 35/Jar
$96.95
Description:
Ideal 89-580 Rg6 Rca Compression Connector 35/Jar
Ideal 89-580 Rg6 Rca Compression Connector 35/Jar
Technical Description:
RG6 Cable Type; Straight Configuration; 35 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.267 to 0.305 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 20 to 18 AWG Solid Center Conductor Size
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089580 |
| Body Material: | Nickel Plated Brass |
| Contact Material: | Gold Plated |
| Standard Package: | 35 per Jar |
| Additional Information: | BandWidth 3 GHz; Dielectric Diameter 0.175 to 0.183 Inch |
| Catalog Number: | 89-580 |
| Brand Name: | RTQ[R] |
| Coupling Style: | RCA |
| Configuration: | Straight |
| Cable Type: | RG6 |
| Center Conductor Size: | 20 to 18 AWG Solid |
| Cable Insulation Outer Diameter: | 0.267 to 0.305 Inch |
| Impedance: | 75 Ohm |
| CATALOG DESCRIPTION: | IDEAL, COMPRESSION CONNECTOR, RCA, CONDUCTOR RANGE: 029 – 042 IN, 20 – 18 AWG CENTER SOLID CONDUCTOR, MATERIAL: BRASS, FINISH: NICKEL-PLATED, NOMINAL IMPEDANCE: 75 OHM, COAXIAL CABLE TYPE: RG-6, BANDWIDTH: 3 GHZ, DIELECTRIC DIAMETER: 0.175 – 0.183 IN, OVERALL JACKET DIAMETER: 0.267 – 0.305 IN |
| Category: | Coaxial & Twinaxial Connectors |
| Full Size Image | |
| Full Technical Description: | RG6 Cable Type; Straight Configuration; 35 Per Jar Standard Package; Nickel Plated Brass Body Material; 0.267 to 0.305 Inch Cable Insulation Outer Diameter; Gold Plated Contact Material; 75 Ohm Impedance; 20 to 18 AWG Solid Center Conductor Size; RCA Coupling Style; RTQ[TM] Brand; Bandwidth 3 GHz; Dielectric Diameter 0.175 to 0.183 Inch |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-580 Rg6 Rca Compression Connector 35/Jar |
| Sub-Category: | Coaxial Connector |
| UNSPSC: | 39121414 |
| UPC 12 Digit: | 783250895809 |
| Unique Product Key: | 5610200 |
| comm code enhanced: | 57110 |
