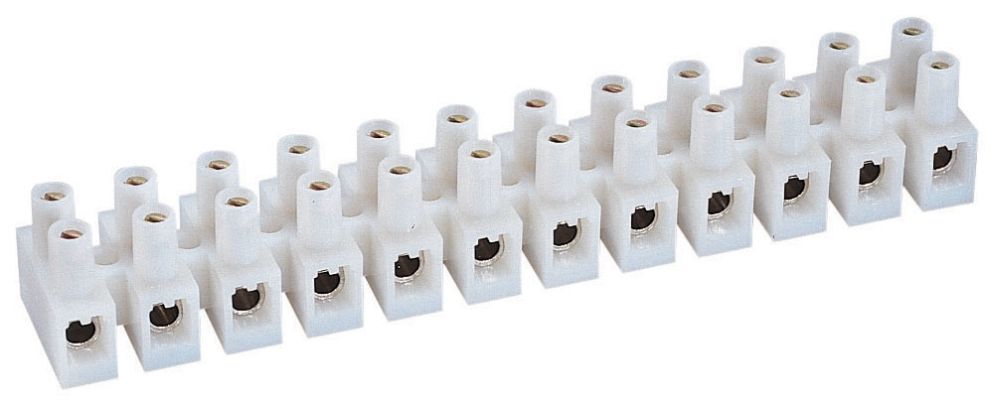

Ideal 89-608 Barrier Strip 12 Circuit 10A/400V Csa 20 – 18 Awg
$11.11
Description:
Ideal 89-608 Barrier Strip, 12 Circuit, 10A/400V Csa 20 – 18 Awg
Ideal 89-608 Barrier Strip, 12 Circuit, 10A/400V Csa 20 – 18 Awg
Technical Description:
Barrier Type; 3.787 Inch Length X 0.669 Inch Width X 0.57 Inch Height Size; White Color; 22 to 12 AWG (UL), 20 to 18 AWG (CSA) Wire Size; UL, CSA Approval; 300 Volt (UL), 600 Volt (CSA) Voltage Rating; 20 Amp (Ul/Csa) Current Rating; No Cover Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325089608 |
| Cover Type: | No |
| Size: | 3.787 Inch Length x 0.669 Inch Width x 0.57 Inch Height |
| Temperature Rating: | 105 Deg C |
| Housing Material: | Rugged Nylon |
| Color: | White |
| Approval: | UL, CSA |
| Additional Information: | Torque Rating 3.5 Inch-Pound |
| Catalog Number: | 89-608 |
| Brand Name: | Ideal |
| Type: | Barrier |
| Number of Circuits: | 12 |
| Voltage Rating: | 300 Volt (UL), 600 Volt (CSA) |
| Current Rating: | 20 Amp (UL/CSA) |
| Wire Size: | 22 to 12 AWG (UL), 20 to 18 AWG (CSA) |
| Terminal Type: | Tubular Screw |
| CATALOG DESCRIPTION: | IDEAL, BARRIER STRIP, WIRE SIZE: 22 – 12 AWG, AMPERAGE RATING: 20, 10 AMP, VOLTAGE RATING: 300, 400 V, MATERIAL: PLASTIC HOUSING, NUMBER OF CIRCUITS: 12, TORQUE RATING: 3.500 IN-LB, RATED TEMPERATURE: 105 DEG C, OVERALL HEIGHT: 0.315 IN, MODEL: PA8DS, ELECTRICAL RATINGS: 20A/300V UL TO 10A/400V CSA |
| Category: | Terminal Blocks & Accessories |
| Full Size Image | |
| Full Technical Description: | Barrier Type; 3.787 Inch Length X 0.669 Inch Width X 0.57 Inch Height Size; White Color; 22 to 12 AWG (UL), 20 to 18 AWG (CSA) Wire Size; UL, CSA Approval; 300 Volt (UL), 600 Volt (CSA) Voltage Rating; 20 Amp (Ul/Csa) Current Rating; No Cover Type; 105 Deg C Temperature Rating; Rugged Nylon Housing Material; Tubular Screw Terminal Type; 12 Circuit(S); Torque Rating 3.5 Inch-Pound |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 89-608 Barrier Strip, 12 Circuit, 10A/400V Csa 20 – 18 Awg |
| Sub-Category: | Terminal Strip |
| UNSPSC: | 39121407 |
| UPC 12 Digit: | 783250896080 |
| Unique Product Key: | 5610202 |
| comm code enhanced: | 64400 |
