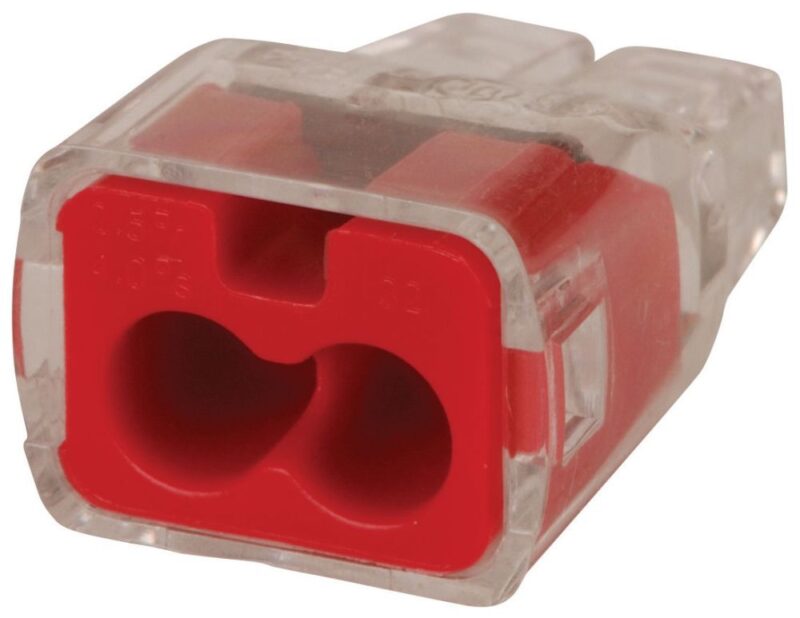

Ideal 30-1032J 12Awg Push-In 2-Port 300 Jar
$256.68
Description:
Ideal 30-1032J 12Awg,Push-In,2-Port,300 Jar
Ideal 30-1032J 12Awg,Push-In,2-Port,300 Jar
Technical Description:
Nylon/Pc (Housing), Copper (Contact), Tin (Plating) Material; Red Color; 22 to 12 AWG (Solid), 18 to 12 AWG (Stranded), 14 to 20 AWG (Tin Bonded) Wire Size; UL 486C/467, UL 94V-2, CSA C22.2, IEC 998-2-2, CE Approval; 600 Volt Voltage Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325069352 |
| Temperature Rating: | 105 Deg C |
| Standard Package: | 300 per Jar |
| Approval: | UL 467/486C, CSA C22.2, CE |
| Additional Information: | RoHS Compliant; Current Rating 20 Amp; Contact Material Copper; Finish Tin Plated; Flammability Rating UL 94-V2 |
| Catalog Number: | 30-1032J |
| Brand Name: | In-Sure[TM] |
| Model: | 32 |
| Voltage Rating: | 600 Volt, 1000 Volt (Fixture/Sign) |
| Wire Size: | 20 to 12 AWG (Solid), 16 to 12 AWG (19 Strands), 18 AWG (7 Strands), 18 to 14 AWG (19 Strands) Tin-Bonded Stranded |
| Number of Ports: | 2 |
| Material: | Nylon/Polycarbonate |
| Color: | Red (Face), Transparent (Housing) |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, IN-SURE, PUSH-IN, SIZE: 0.780 IN LENGTH X 0.520 IN WIDTH X 0.380 IN HEIGHT, CONNECTION: 2 PORTS, WIRE SIZE: #12 AWG – #20 AWG SOLID, #12 AWG – #16 AWG (19 STRAND OR LESS) #18 AWG (7 STRAND) STRANDED, #14 AWG – #18 AWG (19 STRAND OR LESS) STRANDED (TIN BONDED), COLOR: RED, VOLTAGE RATING: 600 V MAXIMUM BUILDING WIRE, 1000 V MAXIMUM SIGNS AND LIGHTING FIXTURES, TEMPERATURE RATING: 105 DEG C SHELL RATED, WIRE TYPE: SOLID, STRANDED, STRANDED (TIN BONDED), MODEL: 32 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Nylon/Pc (Housing), Copper (Contact), Tin (Plating) Material; Red Color; 22 to 12 AWG (Solid), 18 to 12 AWG (Stranded), 14 to 20 AWG (Tin Bonded) Wire Size; UL 486C/467, UL 94V-2, CSA C22.2, IEC 998-2-2, CE Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; 5000 Piece Carton Standard Package; 2 Port(S); in-Sure [R] Brand; RoHS Compliant; Dimension 0.78 Inch Length X 0.52 Inch Width X 0.38 Inch Height; Strip Length 3/8 to 1/2 Inch; 32 Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-1032J 12Awg,Push-In,2-Port,300 Jar |
| Sub-Category: | Push In Wire Connector |
| UNSPSC: | 39121409 |
| UPC 12 Digit: | 783250693528 |
| Unique Product Key: | 5608490 |
| comm code enhanced: | 64200 |
