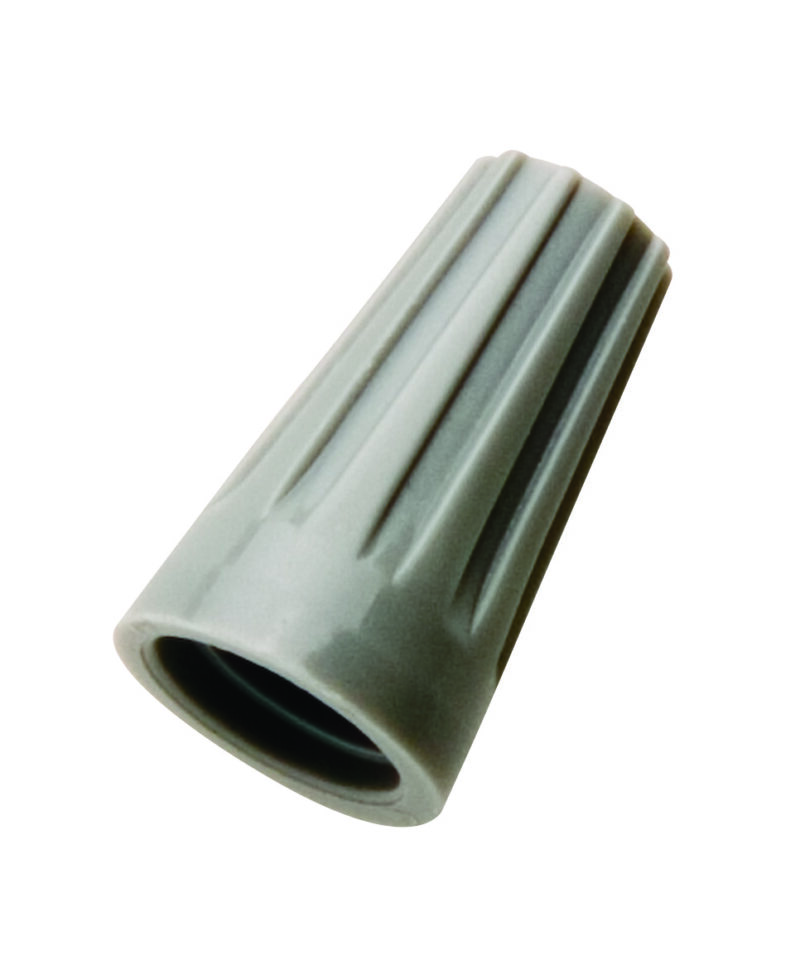

Ideal 30-071 Wire-Nut Wire Connector Model 71B Gray 100/Box
$11.13
Description:
Ideal 30-071 Wire-Nut Wire Connector, Model 71B Gray, 100/Box
Ideal 30-071 Wire-Nut Wire Connector, Model 71B Gray, 100/Box
Technical Description:
Ribbed Type; Gray Color; (2) #22 min. Wire Combination Size; (2) #16 Max. Wire Combination Size; 22 to 16 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 300 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030071 |
| Spring Type: | Fixed, Square Wire |
| Shell Material: | Polypropylene |
| Color: | Gray |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 100 per Box |
| Approval: | UL, CSA, CE, RoHS |
| Additional Information: | Dimension 0.33 Inch Diameter x 0.58 Inch Length |
| Catalog Number: | 30-071 |
| Brand Name: | 71B[R], Wire-Nut[R] |
| Type: | Positive Grip |
| Voltage Rating: | 300 Volt |
| Wire Type: | Copper |
| Wire Size: | 22 to 16 AWG |
| Minimum Wire Combination Size: | (2) #22 |
| Maximum Wire Combination Size: | (2) #16 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WIRE-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 5, CONDUCTOR RANGE: 22 – 16 AWG, MIN 2-16AWG MAX 2-16AWG, COLOR: GRAY, MATERIAL: FLAME-RETARDANT POLYPROPELENE, VOLTAGE RATING: 300 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), MODEL NUMBER: 71B, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Ribbed Type; Gray Color; (2) #22 min. Wire Combination Size; (2) #16 Max. Wire Combination Size; 22 to 16 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 300 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 100 Per Box Standard Package; Copper Wire Type; Polypropylene Shell Material; Fixed, Square Wire Spring Type; Wire-Nut [R] Brand; RoHS Compliant; Overall Dimension 0.33 Inch Diameter X 0.58 Inch Height; Material Steel (Insert); Finish Zinc Plated; Application Residential, Commercial; 71B Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Description: | Ideal 30-071 Wire-Nut Wire Connector, Model 71B Gray, 100/Box |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250300716 |
| Unique Product Key: | 38112 |
| comm code enhanced: | 64200 |
