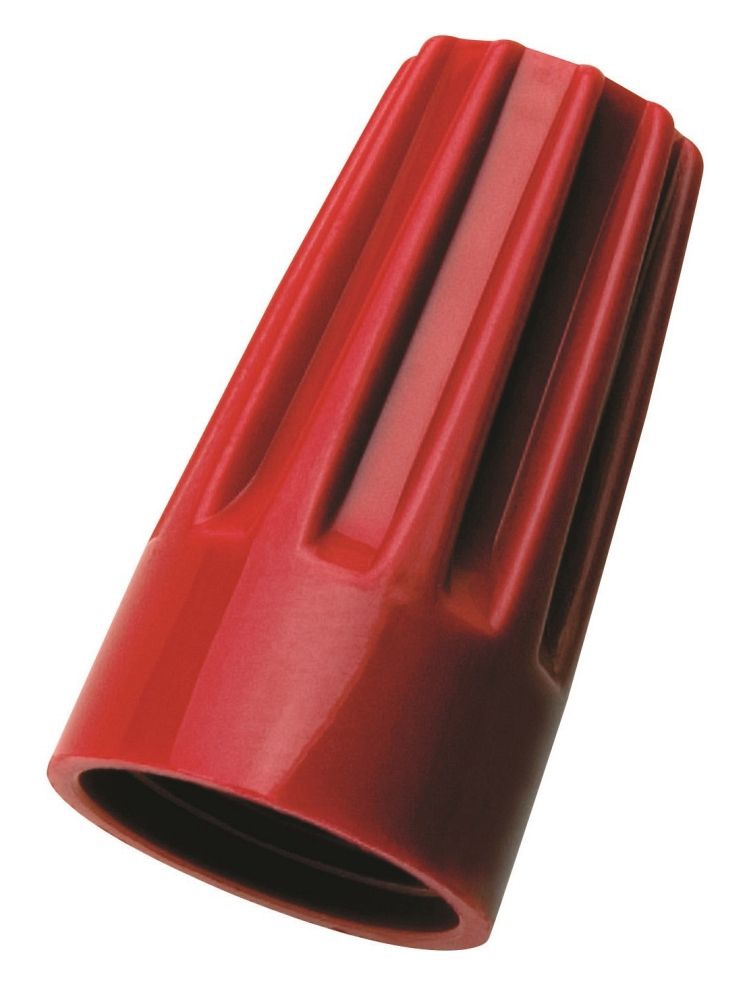

Ideal 30-876 76B Red Wire Connector
$2,504.55
Description:
Ideal 30-876 76B Red Wire Connector
Ideal 30-876 76B Red Wire Connector
Technical Description:
Positive Grip Type; Red Color; (2) #14 min. Wire Combination Size; (4) #12 Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL, CSA, CE Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 15000 Per Barrel Standard Package; Copper Wire Type
- Description
- Reviews (0)
Description
Product Specifications
| UPC: | 78325030876 |
| Maximum Wire Combination Size: | (4) #12 |
| Spring Type: | Fixed, Square Wire |
| Color: | Red |
| Temperature Rating: | 221 Deg F |
| Standard Package: | 15000 per Barrel |
| Approval: | UL, CSA, CE |
| Catalog Number: | 30-876 |
| Brand Name: | Wire-Nut[R] |
| Model: | 76B |
| Type: | Positive Grip |
| Voltage Rating: | 600 V |
| Wire Type: | Copper |
| Wire Size: | 18 to 6 AWG |
| Minimum Wire Combination Size: | (2) #14 |
| CATALOG DESCRIPTION: | IDEAL, WIRE CONNECTOR, WIRE-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 18 – 6 AWG, MIN 2-14 MAX 4-12, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: RED, VOLTAGE RATING: 600 V, MODEL NUMBER: 76B, FLAMMABILITY RATING: UL 94V-2 |
| Category: | Fixture Connectors (Wire-Nuts,Etc.) |
| Full Size Image | |
| Full Technical Description: | Positive Grip Type; Red Color; (2) #14 min. Wire Combination Size; (4) #12 Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL, CSA, CE Approval; 600 V Voltage Rating; 221 Deg F Temperature Rating; 15000 Per Barrel Standard Package; Copper Wire Type; Fixed, Square Wire Spring Type; WIRE-NUT[R], 76B[R] Brand; 76B Model |
| Made in USA: | Yes |
| Manufacturer: | Ideal Industries, Inc. |
| Manufacturer Brand: | Ideal Industries, Inc. |
| Product Brochure | |
| Product Description: | Ideal 30-876 76B Red Wire Connector |
| Sub-Category: | Twist On Wire Connector |
| UNSPSC: | 39121445 |
| UPC 12 Digit: | 783250308767 |
| Unique Product Key: | 6487587 |
| comm code enhanced: | 64200 |
